By default, in the nv.design module, two systems of measurement units are available:

Field units (US oilfield units)
SI units (metric units)

Measurement system is selected at the stage of project creation. For details, see Creating Projects and Importing Projects.

However, you can change the measurement system after a project is created in one of the following ways:

4.4.1 Changing Measurement Units for Specific Parameters#

Most nv.design sections provide the ability to select another unit of measurement for specific parameters. For details on the module sections, see Well Design Parameters.

To change the measurement unit for a specific parameter, to the right of the field with the parameter value, click the current unit of measurement and select the desired option from the list.

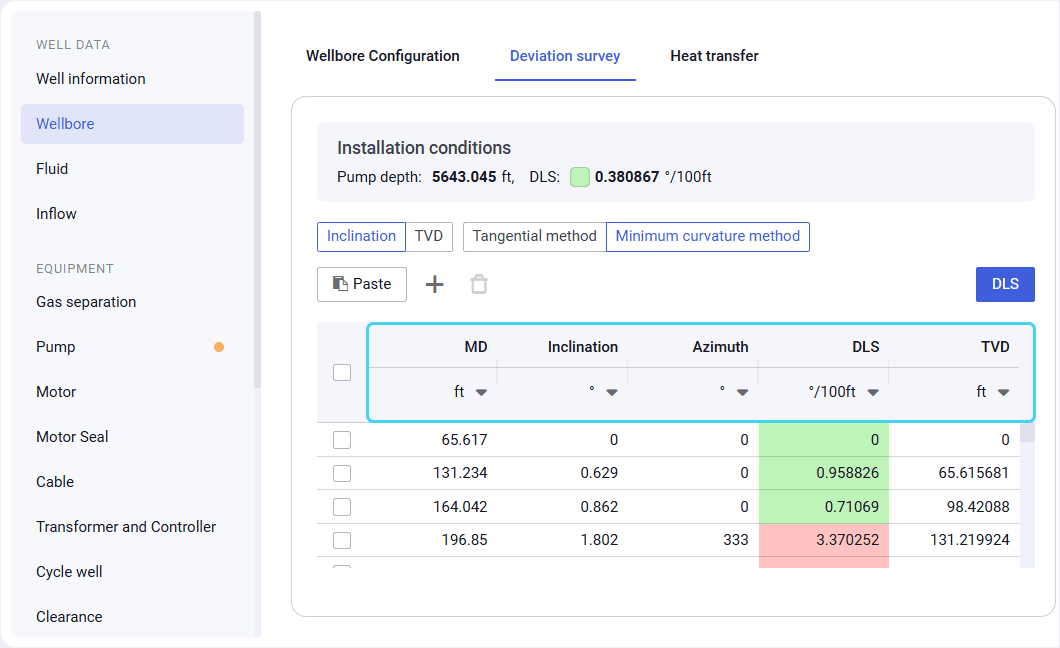

In some tables, units can be changed from the column header.

After you change units for at least one parameter, a red marker ( ) appears on the Units ( ) button in the upper-left corner of the module. It indicates that there are changes made to the measurement units.

If the unit change is permanent, it is recommended to save the modified measurement system as a custom set. For details, see Configuring Custom Set of Units.

4.4.2 Selecting Another Measurement System for Entire Project#

After the project is created, you can change the measurement system selected at the creation stage.

To do this, open the desired project and perform the following actions:

In the upper-left corner of the nv.design module, click Units ( ) .

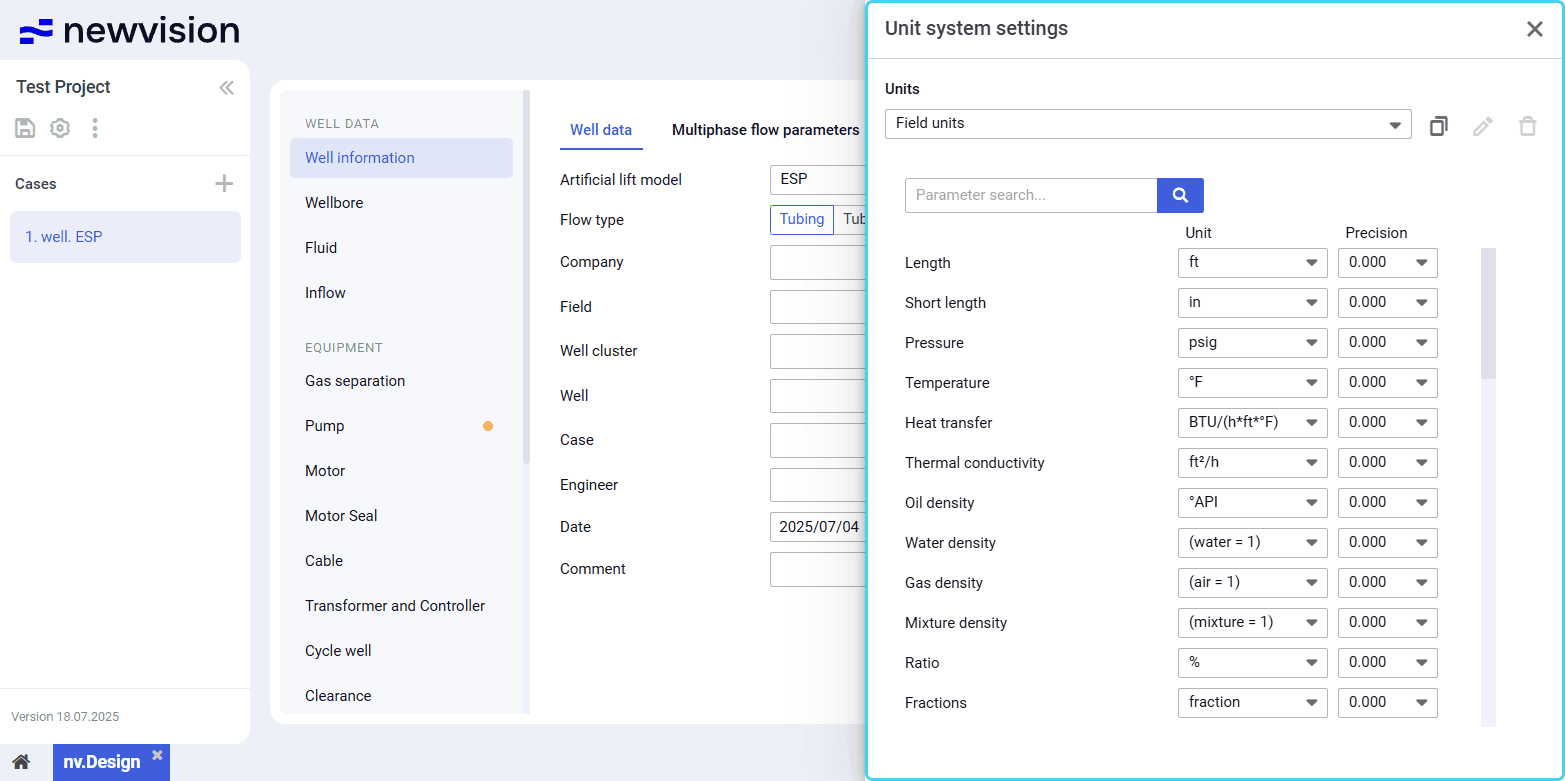

The Unit system settings window opens in the right part of the module.
Select image to enlarge
At the top of the window, under the Units heading, select the desired measurement system from the list.
Close the window by clicking the cross icon ( ) in its upper-right corner.

4.4.3 Configuring Custom Set of Units#

nv.design provides the ability to configure custom sets of measurement units. This feature is helpful when the well design requires using units from different measurement systems with different precision for various parameters.

You can create a custom set of units:

4.4.3.1 Configuring Custom Set of Units on Project Creation or Import#

To configure a custom set of units on creating or importing a new project, perform the following actions:

In the New project window, click create it now under the list of available unit systems.

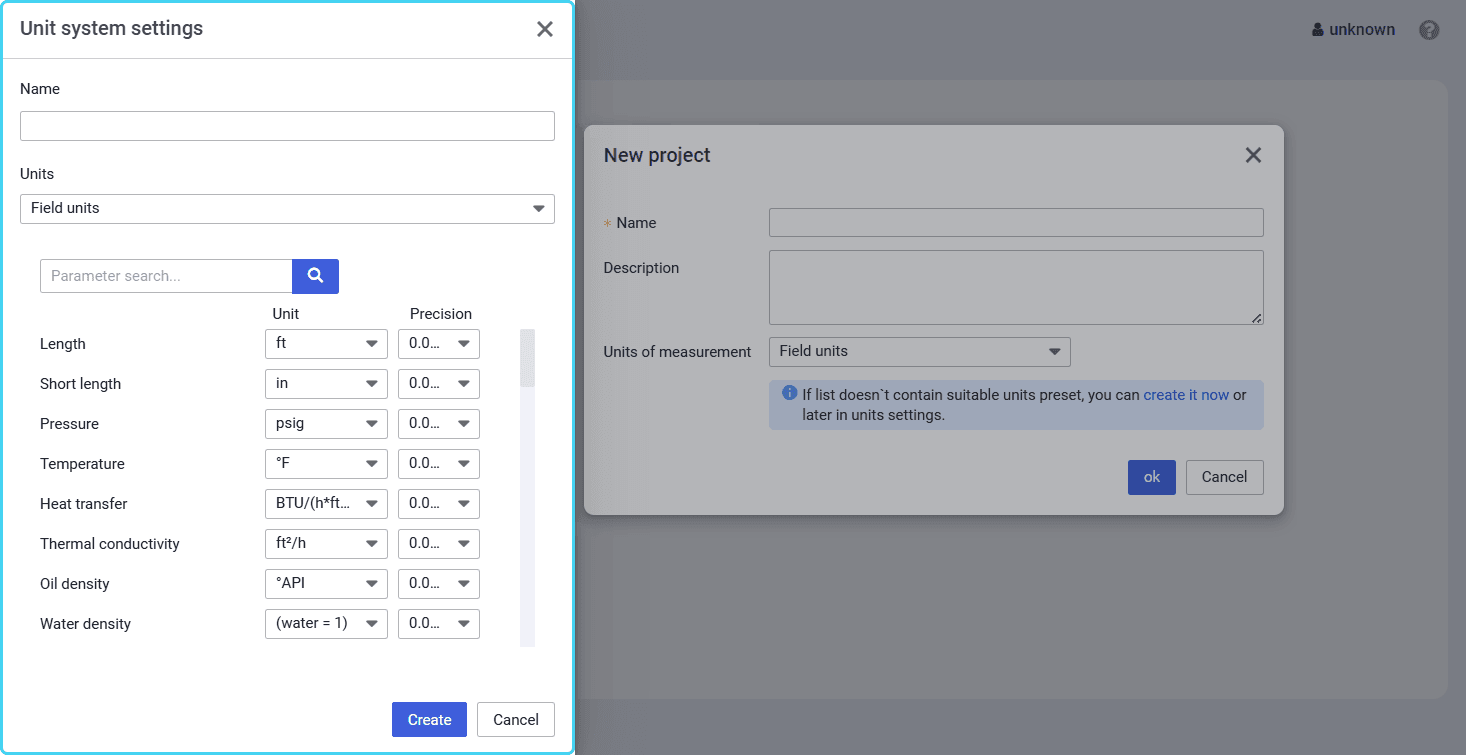

Select image to enlarge
The Unit system settings window opens in the left part of the module.
Select image to enlarge

In the Unit system settings window, perform the following actions:

a. At the top of the window, in the Name field, enter the name for the new set of units.

b. (Optional) From the Units list, select an existing unit system based on which you want to create a new one.

c. (Optional) Search for the parameter for which you want to select another measurement unit or its precision level by entering the parameter name or its part in the Parameter search field.

d. To the right of the desired parameter name, select the desired unit from the list in the Unit column.

e. To specify precision with which the parameter value will be displayed, in the Precision column, select the desired number of decimal places from the list.

Note
After you modify the measurement unit or precision level for at least one parameter, to the right of the corresponding lists, the Reset ( ) button appears. Using it, you can reset values in both columns to their initial state.

Scroll horizontally to view a wide table.

f. At the bottom of the window, click Create .
The created set is automatically selected from the Units list.

Note
You can modify the created set or create a new one later, while working on an existing project. For details, see Configuring Custom Set of Units for Existing Project.

Scroll horizontally to view a wide table.

4.4.3.2 Configuring Custom Set of Units for Existing Project#

To configure a custom set of units while working on a project, perform the following actions:

In the upper-left corner of the nv.design module, click Units ( ) .
The Unit system settings window opens in the right part of the module.
Note
If you have already altered measurement units for the desired parameters while working with the module sections, skip to Step 6 of this procedure.
Scroll horizontally to view a wide table.

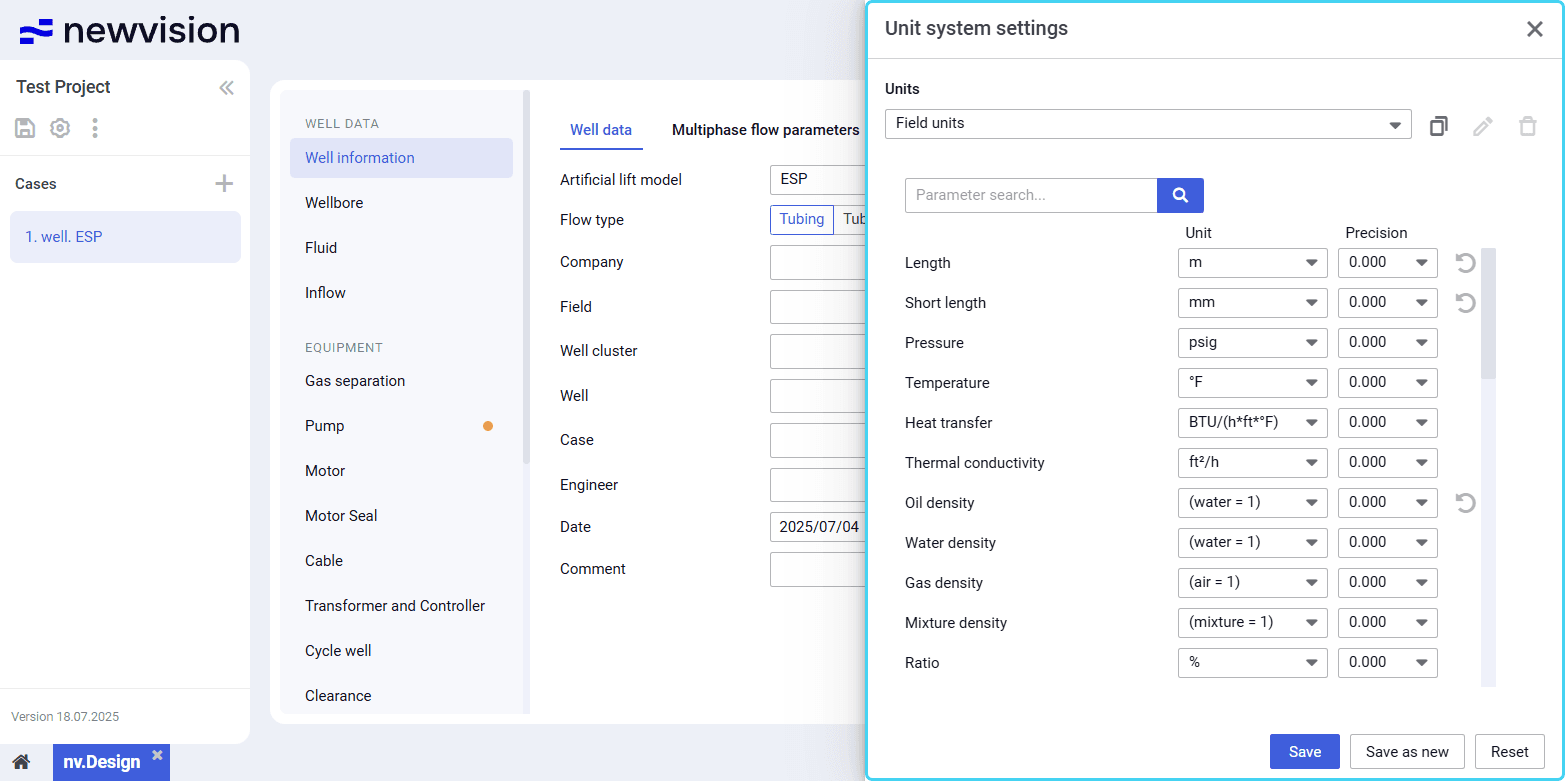

Select image to enlarge
(Optional) From the Units list, select an existing unit system based on which you want to create a new one.
Note
You can also create a copy of an existing default or custom set of units by clicking Clone ( ) to the right of the Units list.
Scroll horizontally to view a wide table.
(Optional) Search for the parameter for which you want to select another measurement unit or its precision level by entering the parameter name or its part in the Parameter search field.
To the right of the desired parameter name, select a unit from the list in the Unit column.

To specify precision with which the parameter value will be displayed, in the Precision column, select the desired number of decimal places from the list.

Scroll horizontally to view a wide table.

Depending on the measurement system selected at Step 2 , at the bottom of the Unit system settings window, perform one of the following actions:
- (For default systems) Click Save as new , and then, in the window that appears, enter the name for the new set of units and click Create .
Select image to enlarge

- (For custom sets)
To save changes made to the set, click Save .
To save changes as a new set, click Save as new , and then, in the window that appears, enter the name for the new set of units and click Create .
The configured set is automatically selected from the Units list and can be further used in other projects.
(Optional)
To rename a custom set, to the right of the Units list, click Edit ( ) .
Select image to enlarge
To delete a custom set, to the right of the Units list, click Delete ( ) .
