Adding Calculation Steps

Select image to enlarge

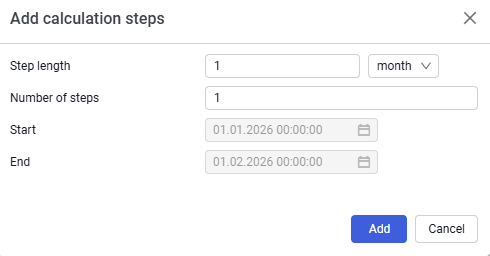

This form lets you add new steps to the reservoir: historical steps for adding new production history records, as well as new forecast steps, and also configure a dynamic model calculation step. For example, the first year of the forecast calculation can be set with a 1-month step, and the second and third years with a 1-quarter step or any other required step.

Contains the following elements:

Step length
In the cell you can specify any step length by typing, pasting from the clipboard, or using the spinner in the cell. The step unit is selected from the drop-down list — second, minute, hour, day, month, quarter, year;

Number of steps
Specify the required number of steps to add to the existing ones. You can type the value, paste it from the clipboard, or use the spinner in the cell;

Step start
Specified automatically from the last previously defined step. Editing is not available;

End
Calculated automatically from the specified number of new steps;

Cancel
To exit without saving changes;

Add
To add new calculation steps.
