Entering IPR Data
To enter IPR data, perform the following actions:
1.In the object Navigator, select a well.
2.On the IPR tab, open the inflow editor using the
button
3.In the Inflow model (IPR) window, specify:
- Inflow type;
- Productivity coefficient;
- Reservoir pressure;
- Bubble point pressure;
- Water cut.
4.If needed, enter test data — one or more rows. To do this, add new rows using the Add button. Enter liquid flow rate and bottomhole pressure values in the new rows. You can enter values manually from the keyboard, using the spinner in the cell, or by pasting from the clipboard from previously prepared tables. To do this, select the required value range in the prepared table, copy it, then select the first cell of the range where the copied values should be pasted and click
. The values will appear in the table.

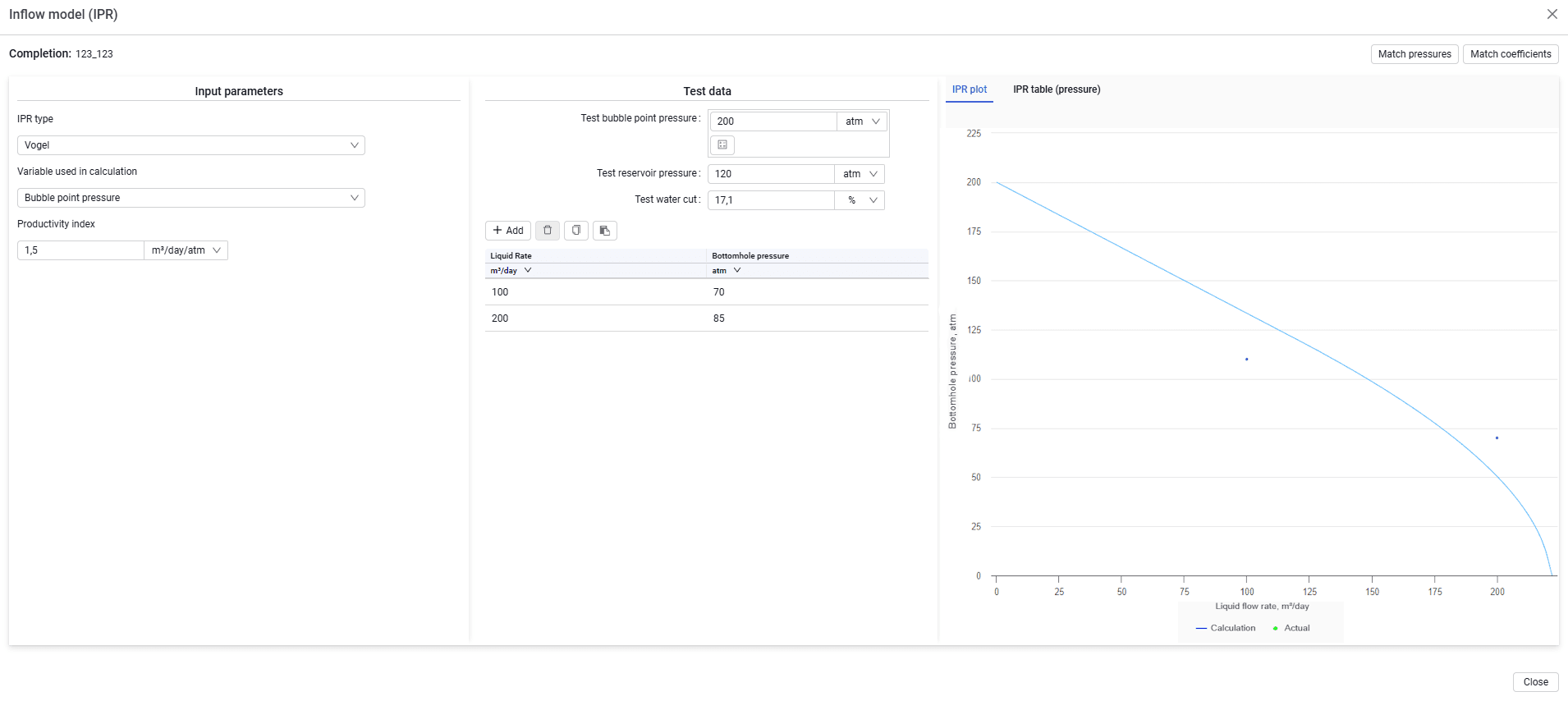

5.The IPR curve and actual test points will automatically be displayed on the plot.
Select image to enlarge
6.If needed, you can match reservoir pressure Match pressure or the productivity coefficient Match coefficients to the specified tests.
