Linked models

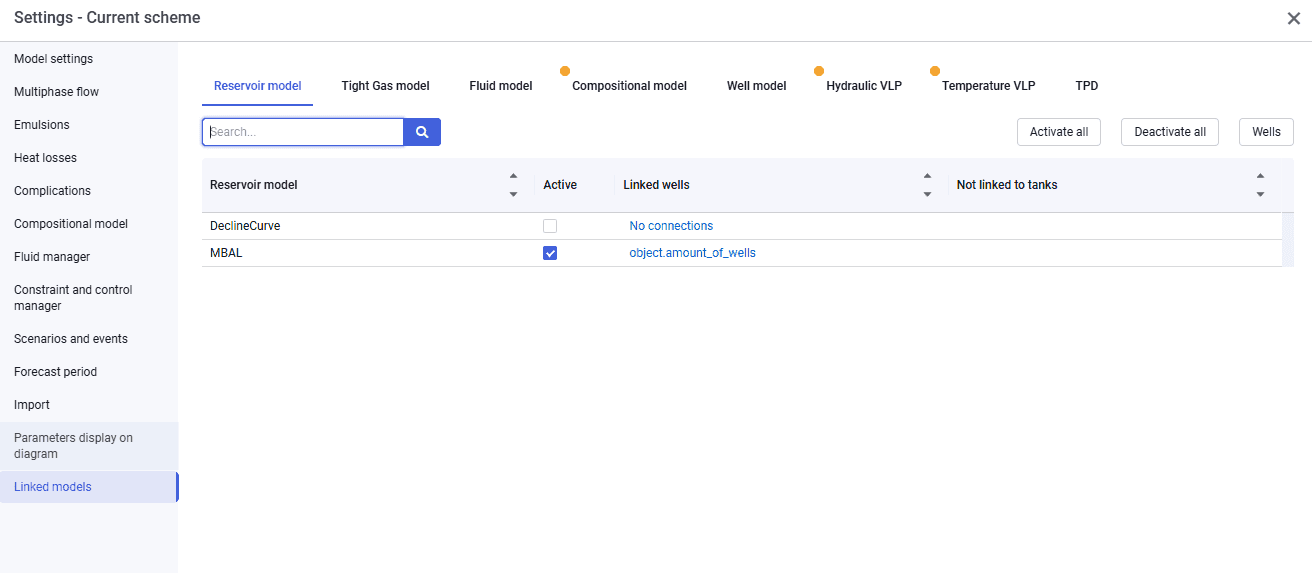

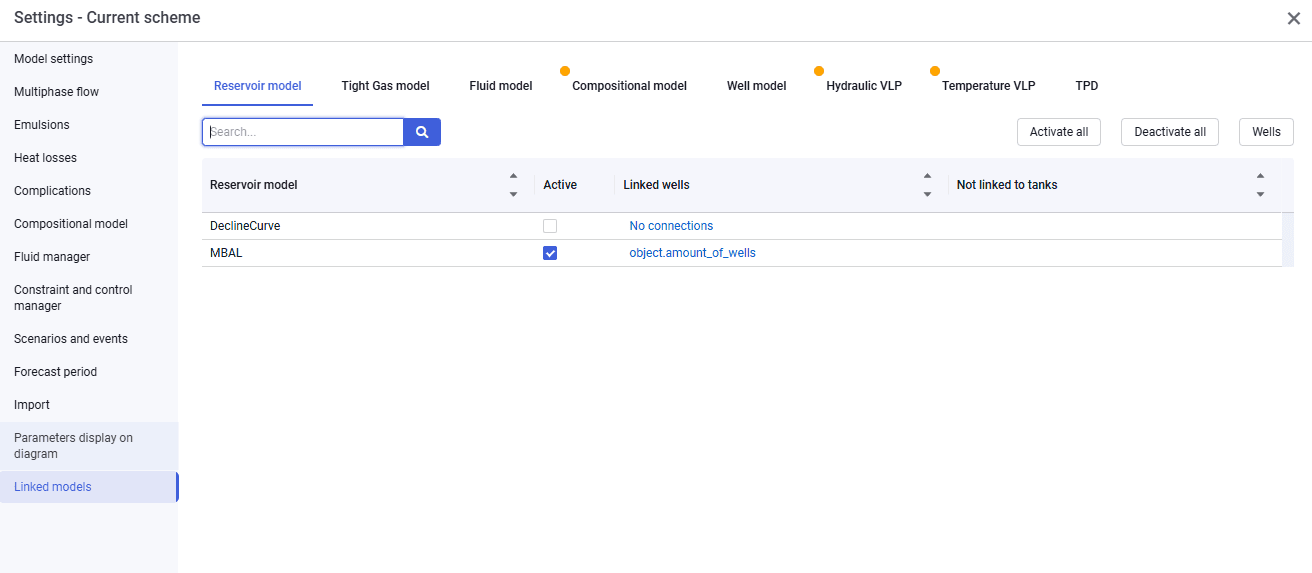

The "Linked models" tab looks as follows.

Select image to enlarge

This tab shows how component models are linked to "Well" objects in nv.AIM PIPE.

The tab provides bulk activation of models Activate all and bulk deactivation of models Deactivate all.

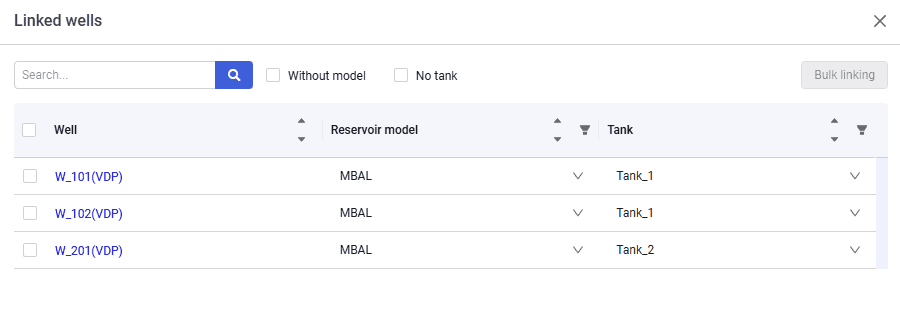

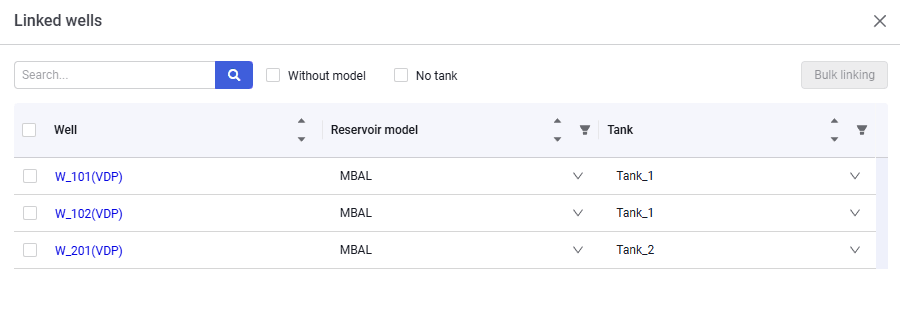

To link component models, open the "Wells" window in the right-hand corner above the table.

Select image to enlarge

You can link component models to wells in two ways:

• manual selection of a model for each well from the drop-down list;
• bulk linking of models to wells selected with check boxes in the table.

In this window you can also search wells by name, filter wells without a link, and sort wells and models in ascending or descending order.
