Export from an existing fluid model in Black Oil correlations format

To export data from an existing fluid model in Black Oil correlations format, do the following:

1.First, open the fluid model in Black Oil correlations format by clicking next to the model name in the model tree.

2.If the model is locked for editing, enter edit mode by clicking next to the model name in the model tree. After you enter edit mode, the symbol changes to , and the login is displayed next to the model name.

Select image to enlarge

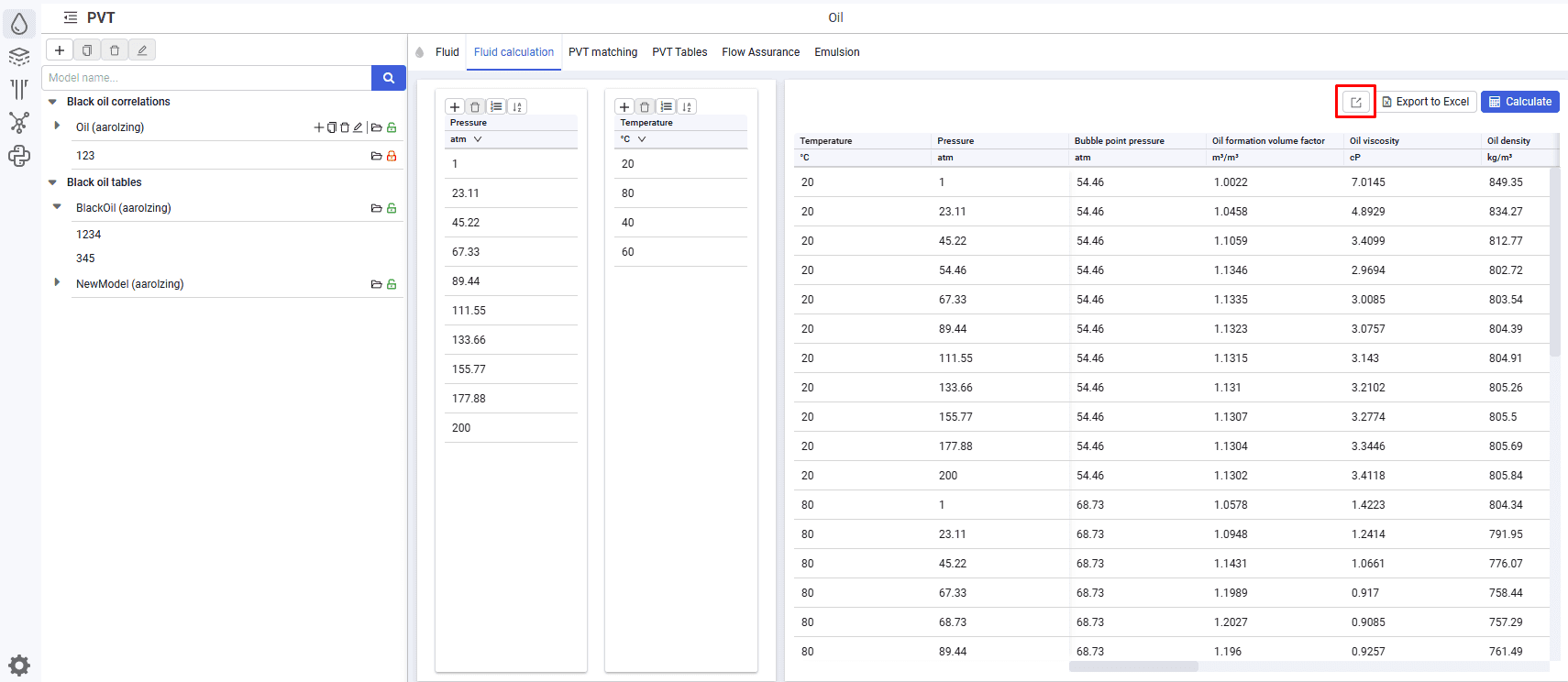

3.Then go to the "Fluid calculation" tab, calculate the model if required, and click the Export PVT table button above the calculation results table.

4.After you click the button, the "Export calculation result to PVT table" window opens, where you can create new or use existing model and region, select the calculation temperature and reference pressure, and then click Export.

Select image to enlarge

5.The fluid model in Black Oil tables format appears in the model tree, or the data is overwritten in the existing model.
