IPR

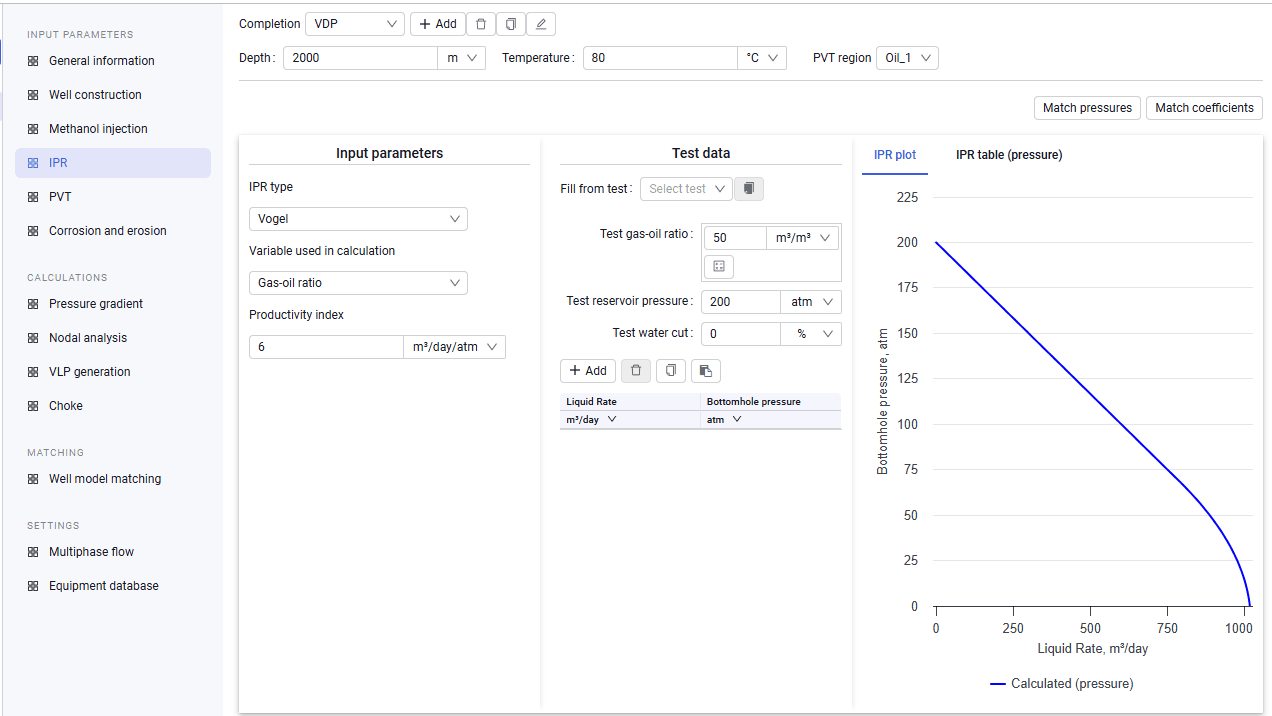

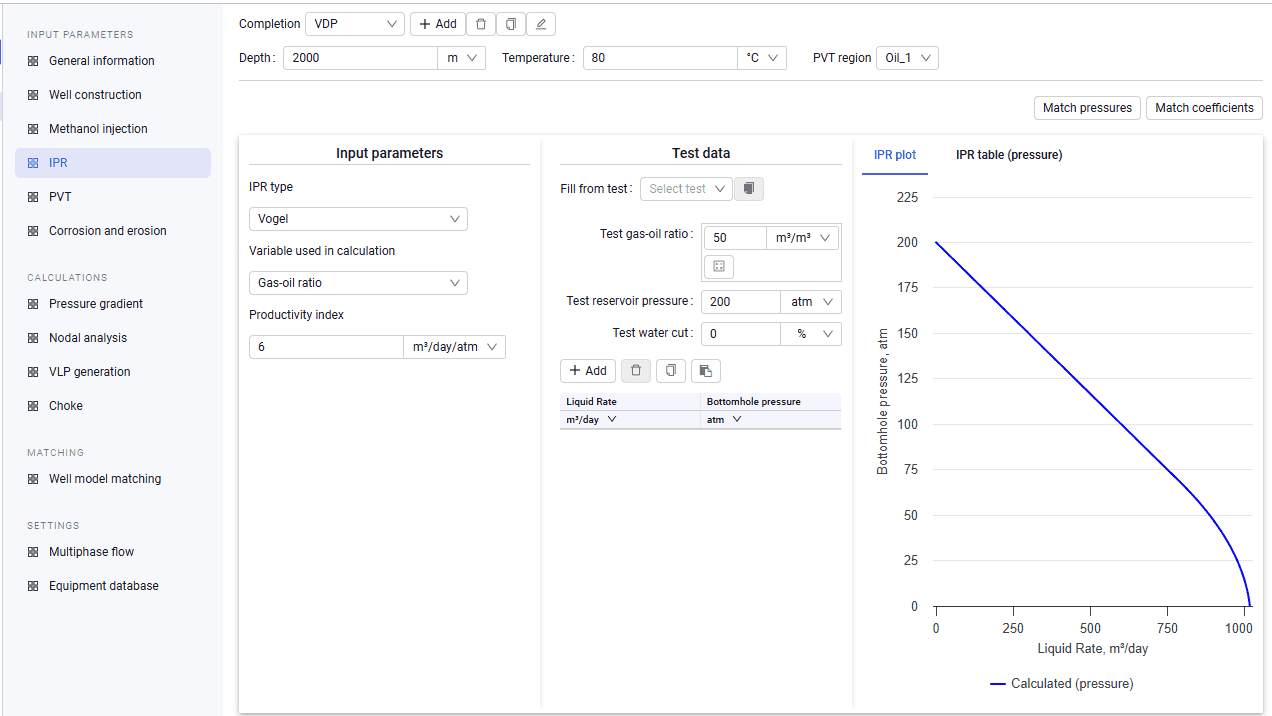

When you select this tab, the right pane shows fields used to calculate the IPR curve: completion, depth, temperature, PVT region, IPR type, source data depending on the selected IPR type, test bubble point pressure, test reservoir pressure, test water cut, and test data (liquid flow rate, bottomhole pressure).

This tab also lets you match pressures or coefficients (clicking "Match pressures" recalculates test reservoir pressure according to the test data; clicking "Match coefficients" recalculates the productivity index).

Select image to enlarge
