Area 1. Object navigator

This area displays a list of all objects in the Integrated Model.

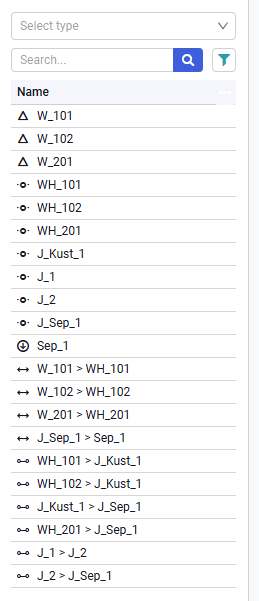

Select image to enlarge

It contains the following elements:

Select types
drop-down list of object types. When you select an object type from the list, the table shows only the names of objects of the selected type. The drop-down list includes: pipelines, objects, wells, sources, sinks, chokes, separators, joints, generic equipment, sub-flowsheets, pumps, inflows;

Search
search box. Used to search for objects by name;

filter;

The table header contains the following elements:

sort button. When clicked, a list with two buttons appears: "Sort ascending" and "Sort descending". Clicking them sorts the objects in the table in ascending or descending order, depending on the selection;

button to clear sorting.
