Pressure Matching
Select image to enlarge

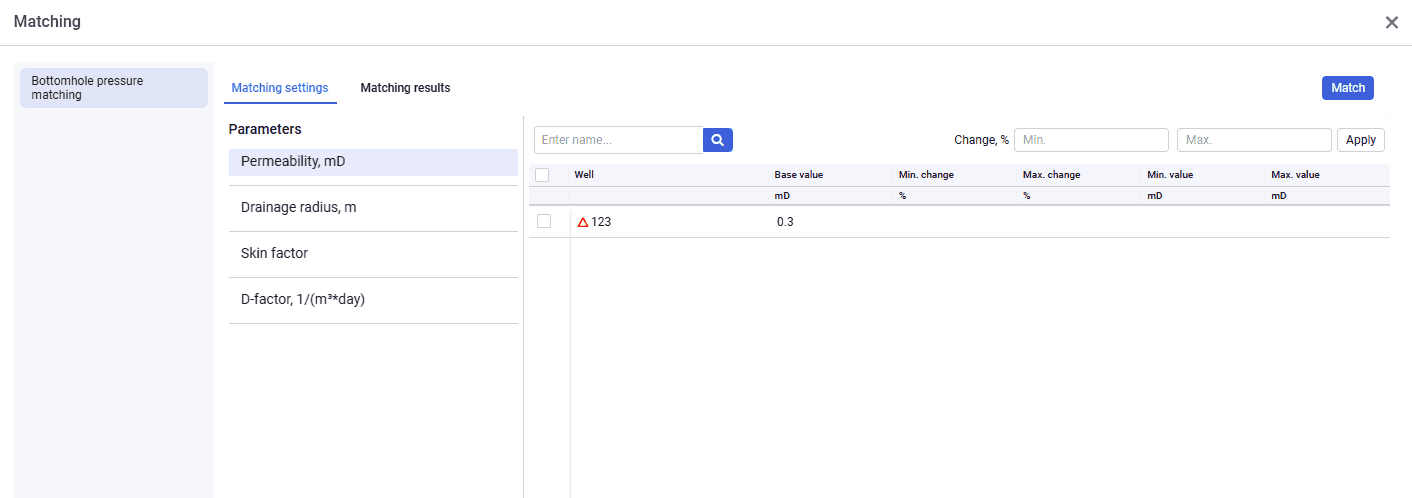

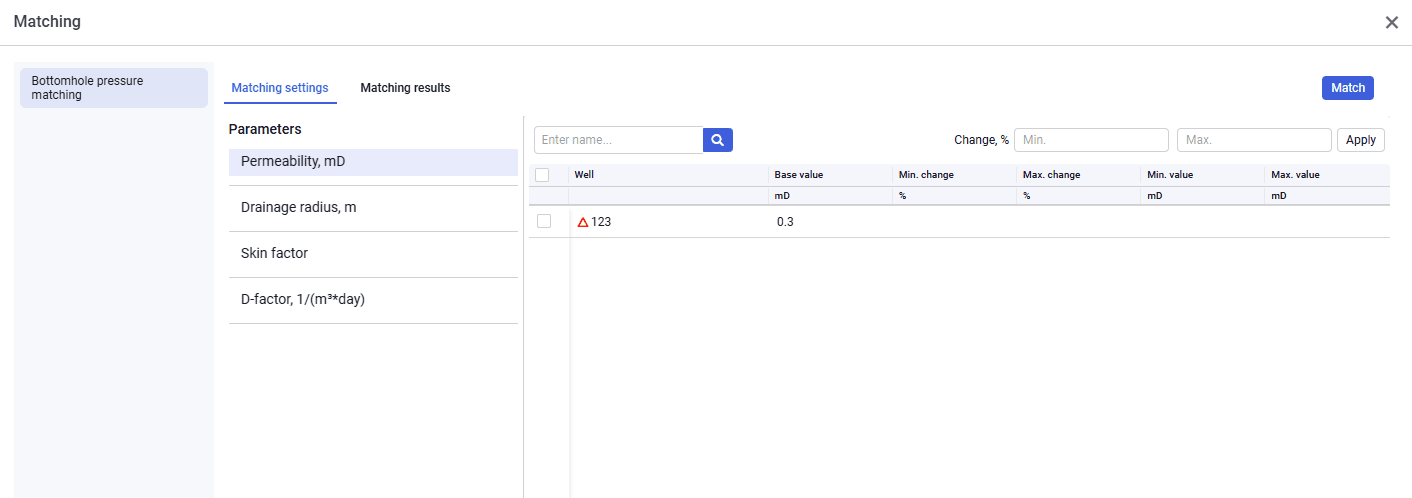

Match. To start reservoir pressure matching.
List of parameters for configuration. All possible matching parameters are displayed.
List of available parameters:
- permeability;
- drainage radius;
- skin factor;
- D-factor.
Well search box;
Minimum percent change of the selected parameter during matching;
Maximum percent change of the selected parameter during matching;
Apply. To apply the minimum and maximum percent change of the parameter. You can apply the values to one well or to several wells at once.
Table with reservoir settings
Contains the following parameters:
- Well. Contains the list of available wells (in the selected model) for the selected parameter;
- Base value. Base value of the selected/varied parameter. By default, the first entered value from the input form is displayed;
- Min. change, %. Specify the minimum percent change of the selected/varied parameter; matching is not performed below this value;
- Max. change, %. Specify the maximum percent change of the selected/varied parameter; matching is not performed above this value;
- Min. value. Displays the minimum value of the selected/varied parameter; matching is not performed below this value;
- Max. value. Displays the maximum value of the selected/varied parameter; matching is not performed above this value.
