Drawing the system
The purpose of this step is to graphically display the gathering and transportation system.

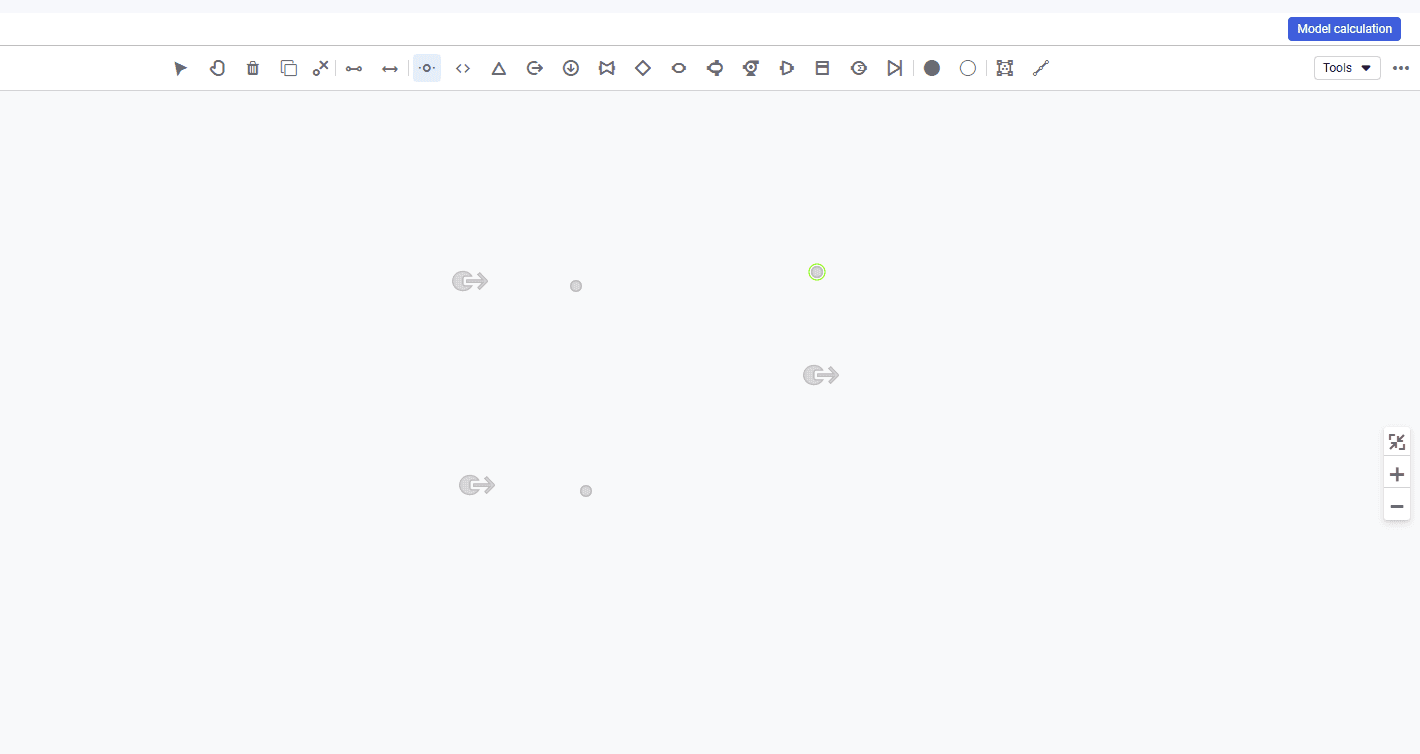

1.Start by building sources. Using the icon
above the graphics area, add several sources to the schematic.

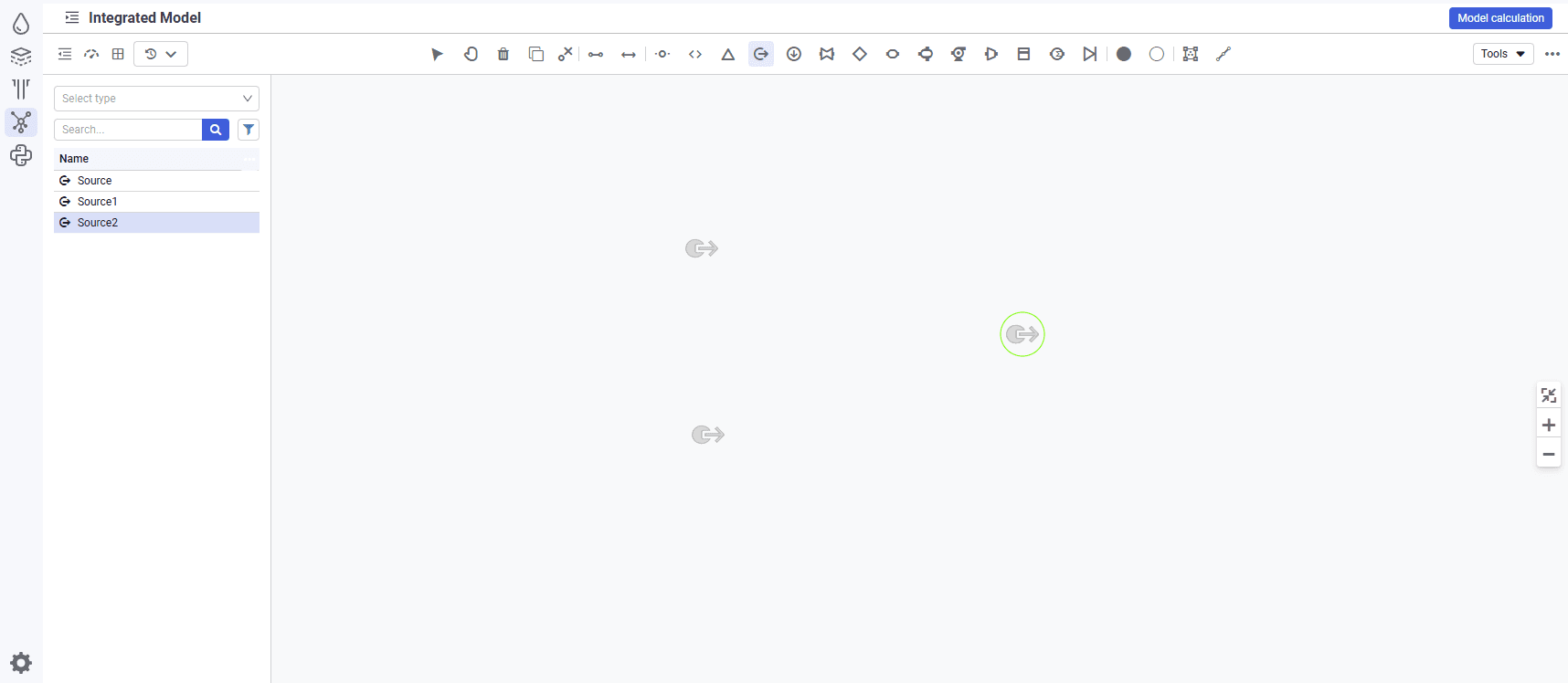

Select image to enlarge2.To move objects that have already been built, click the icon
above the graphics area. To delete — click the icon
.
3.Next, build joints using the icon
: a wellhead for each source, two manifolds, and a joint upstream of the separator.
Select image to enlarge
4.Using the icon
, add a sink to the schematic. It will be the terminal point of the system.

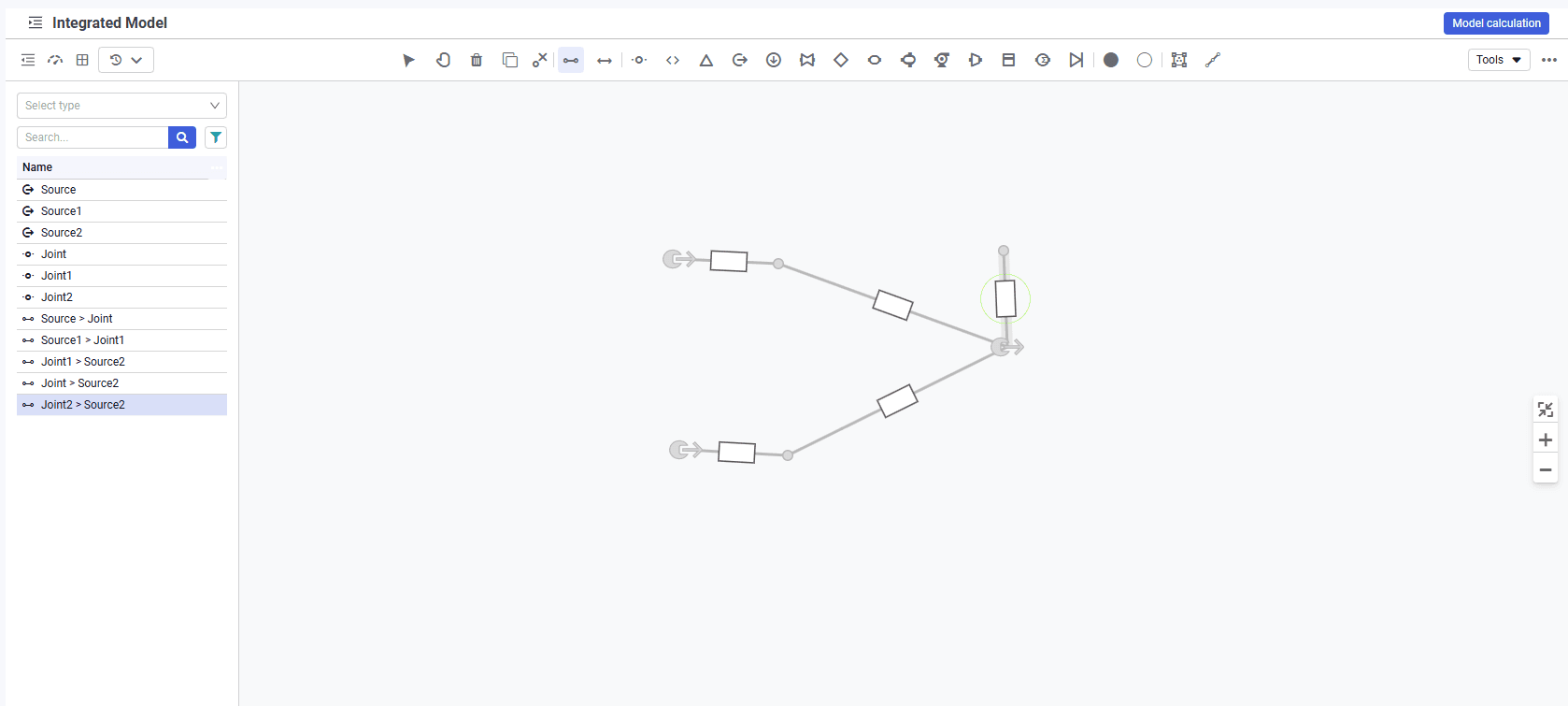

5.Using pipelines (
) and connections (
), connect the objects to each other.

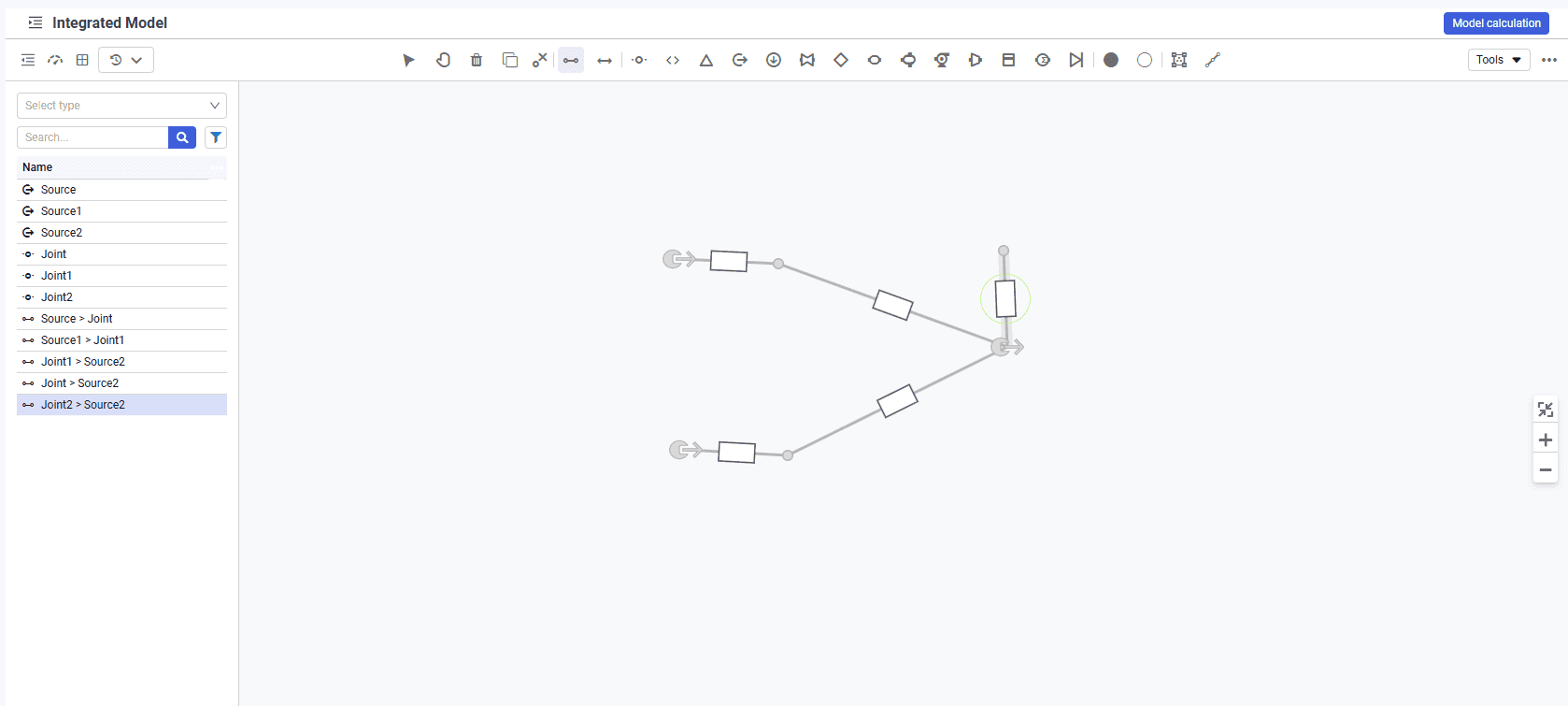

Select image to enlarge6.At this point, drawing the system can be considered complete
