Well construction

When you select this section, the right pane shows the following tabs:

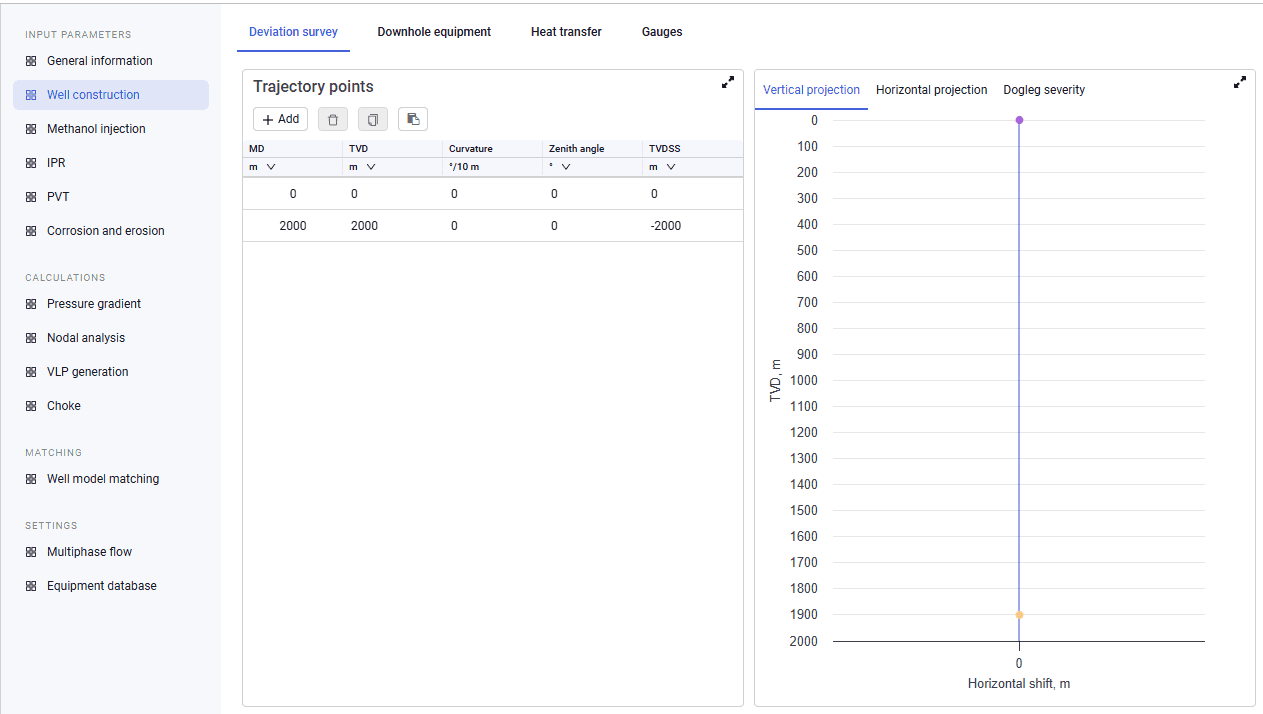

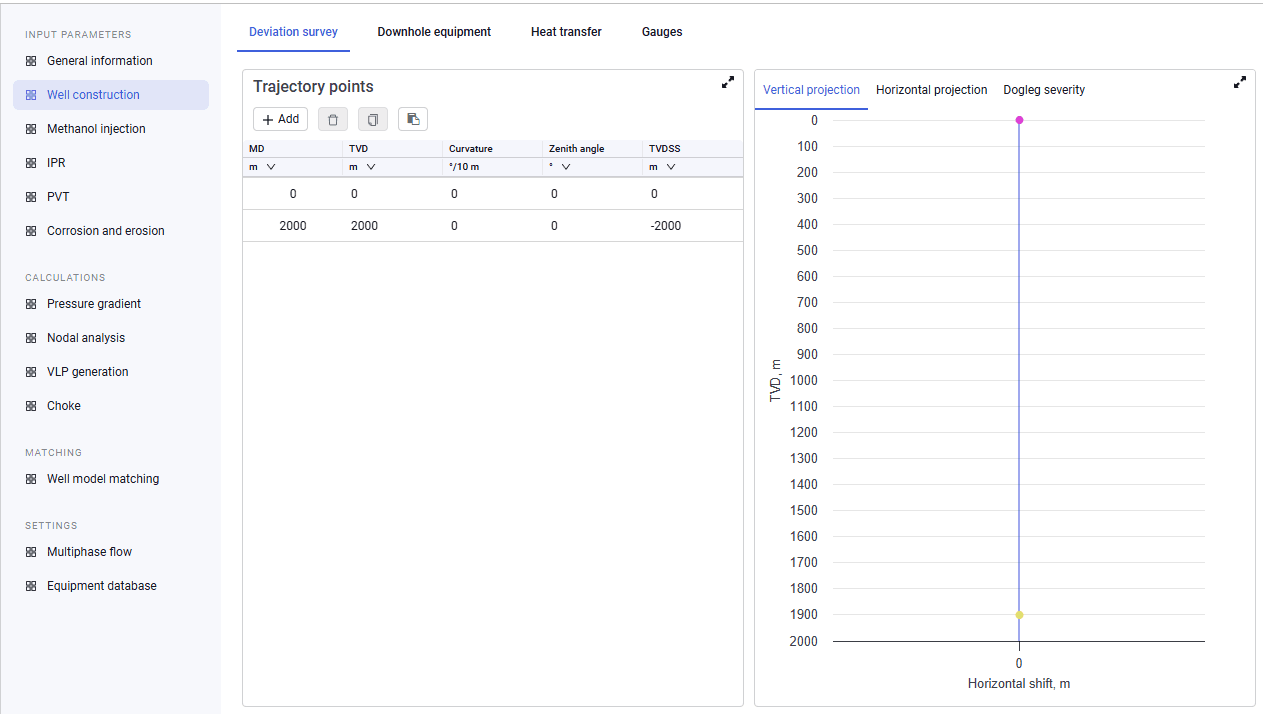

• Deviation survey (trajectory points — MD, zenith angle, azimuth, dogleg severity, TVD, TVDSS);

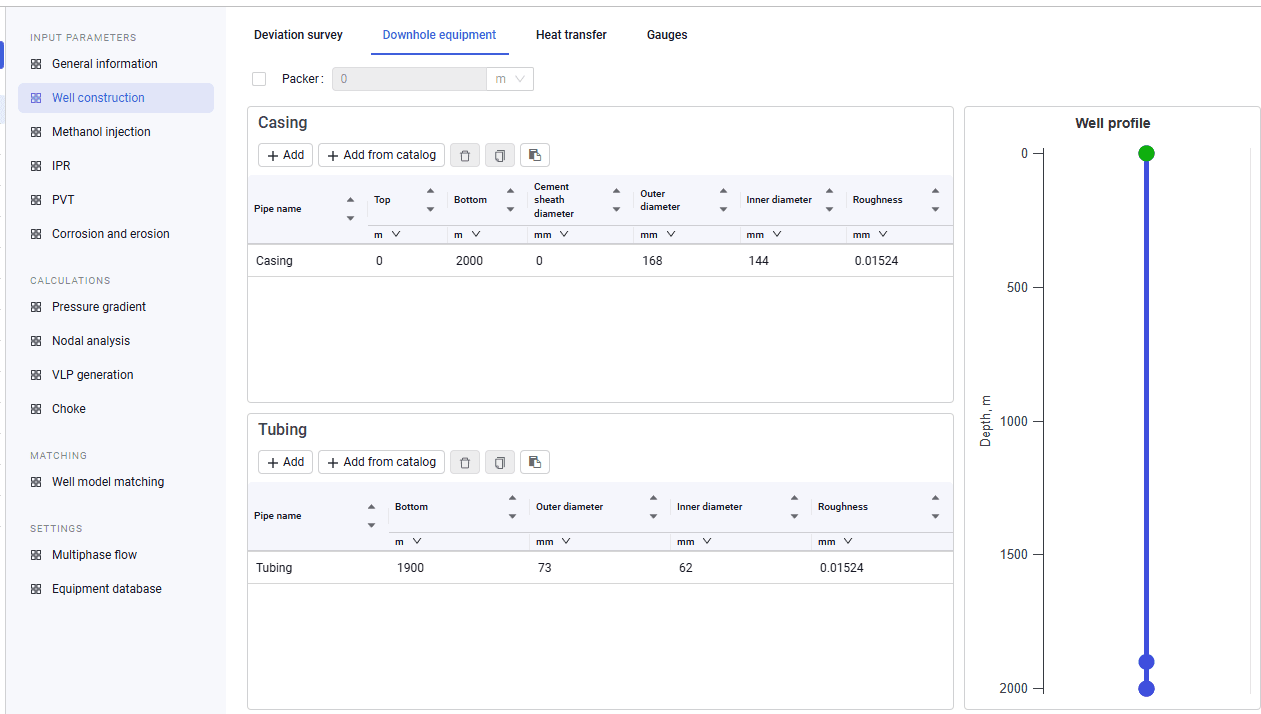

• Downhole equipment (packer; casings — pipe name, top, bottom, cement sheath diameter, outer diameter, inner diameter, roughness; tubing — pipe name, bottom, outer diameter, inner diameter, roughness);

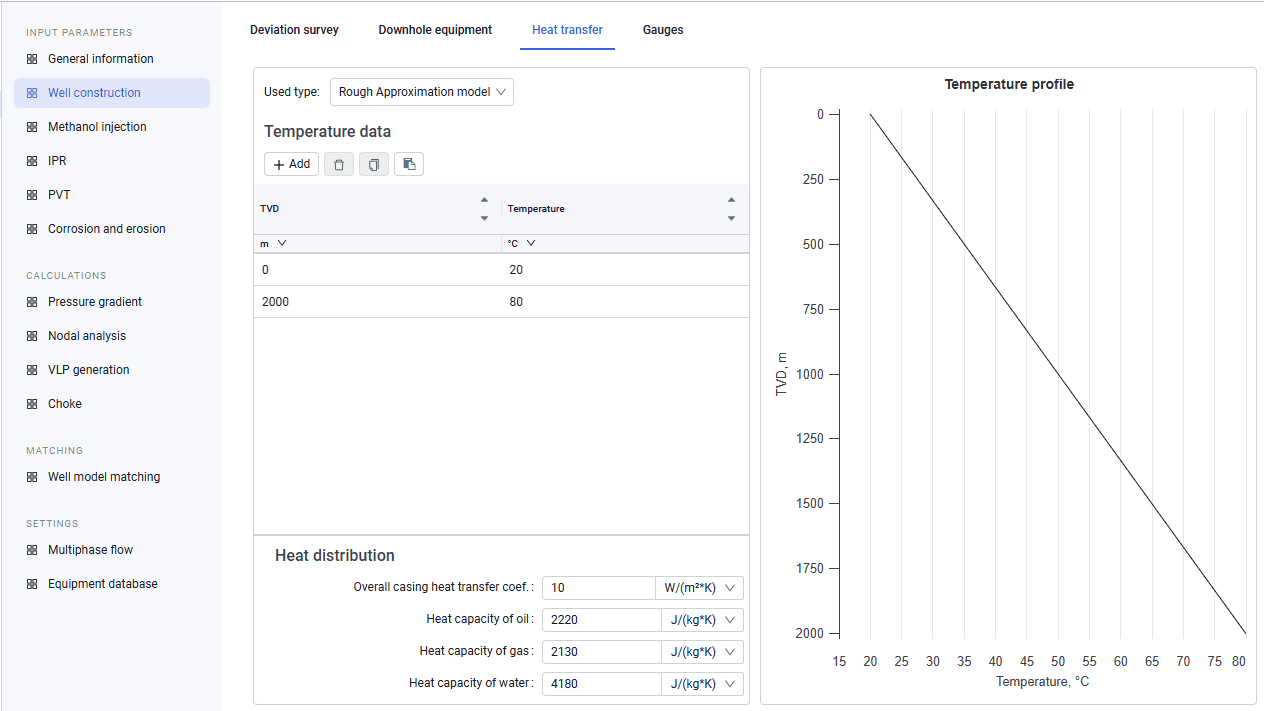

• Heat transfer (used type; temperature data — TVD, temperature; other source data depending on the selected model);

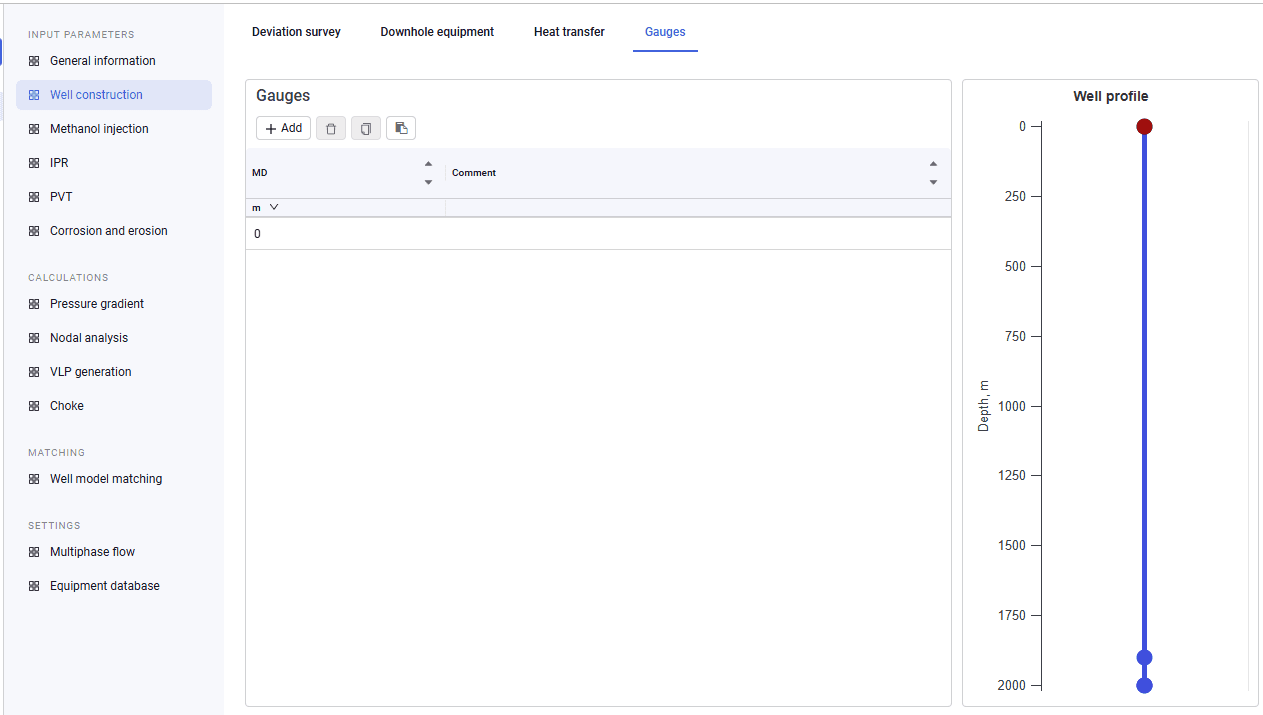

• Gauges (MD, comment):

Select image to enlarge

Select image to enlarge

Select image to enlarge

Select image to enlarge
