nv.AIM WELL start page

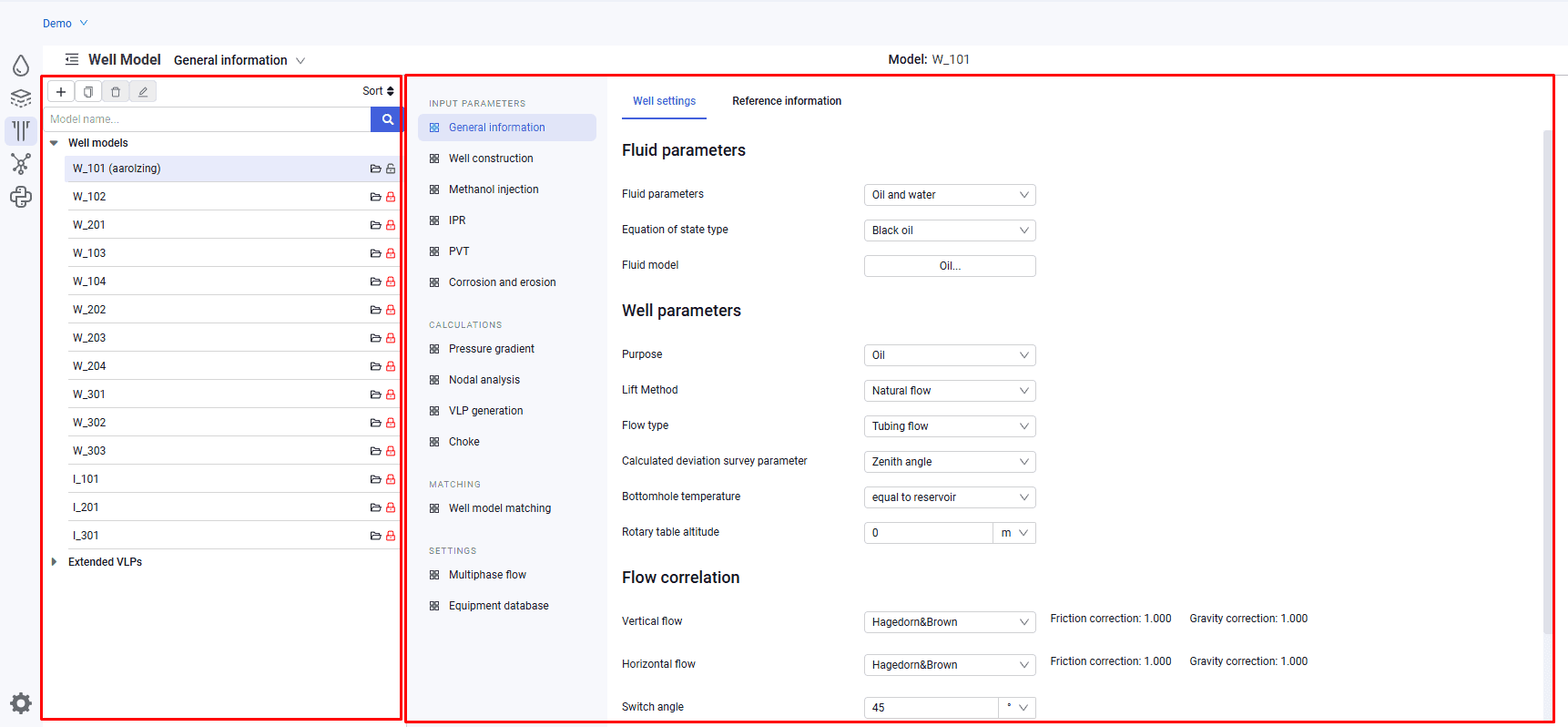

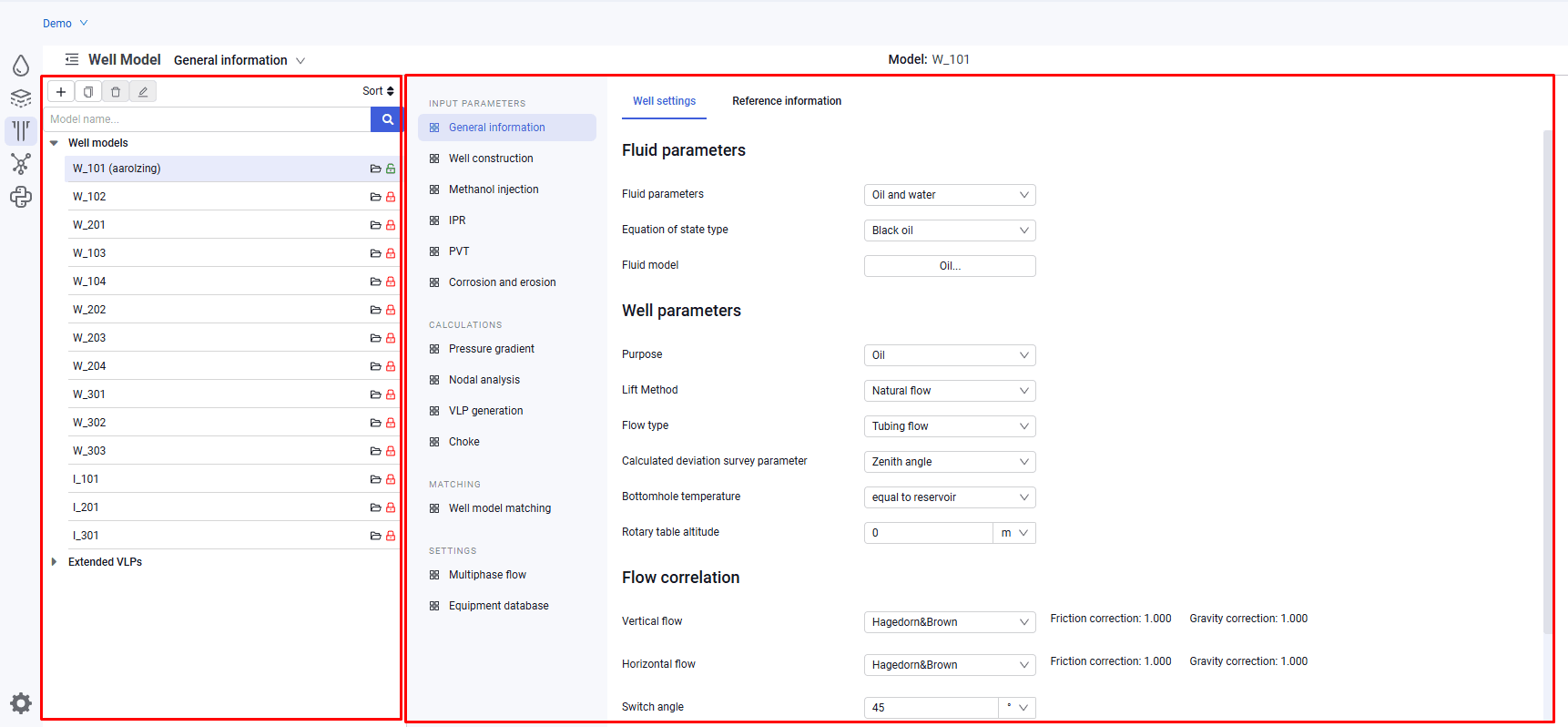

The nv.AIM WELL module start page consists of two main areas: the tab tree (left) and the well work area (right).

The model tree contains the following controls:

Hide/show model tree
— used to enlarge the work area for working with models;

Create new model
— used to create new models in the project;

Clone selected model
— the button is inactive by default; to clone a model, select it in the tree. This function is used to create, configure, and run calculations on a model when the original model must not or cannot be changed;

Delete selected model
— the button is inactive by default; to delete a model, select it in the tree;

Rename selected model
— the button is inactive by default; to rename a model, select it in the tree.

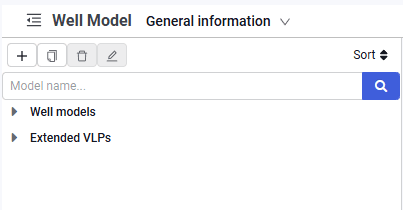

The model tree displays models of different types — well models and VLP tables (temperature, hydraulic, and extended). For convenience, models are grouped by type.

Select image to enlarge

By default, the model list is collapsed. The button expands the model list.

Select image to enlarge

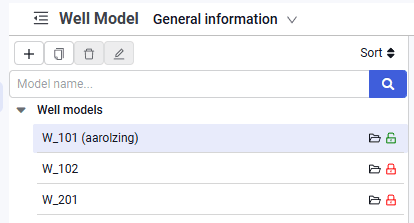

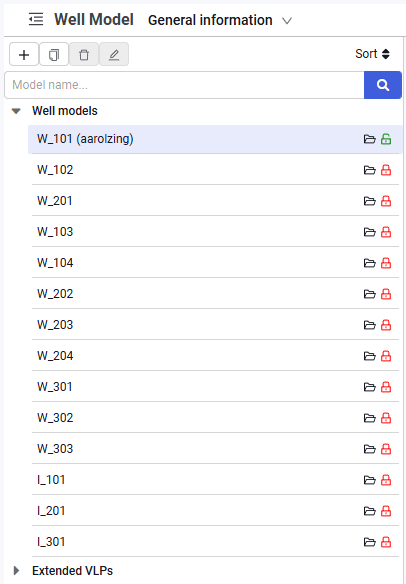

The following controls are available for each model:

Load model
— clicking this button loads the model so you can view all model properties and parameters. Model editing is not available;

Enter edit mode
— clicking this button opens access to model editing;

Exit edit mode
— available only in edit mode.

In edit mode, the row with the model shows the login of the user who is currently editing. While a model is being edited, other users can open it only in read-only mode and cannot run calculations or make any changes to the model.

Select image to enlarge

Exiting edit mode is accompanied by a pop-up window:

• "Save" – all model changes are saved.
• "Don't save" – changes are not saved; the model remains in the state it had before editing.
• "Cancel" – exiting edit mode is not performed.

The well work area consists of several modules:

• Input parameters
• Calculations
• Matching
• Settings
