Choke

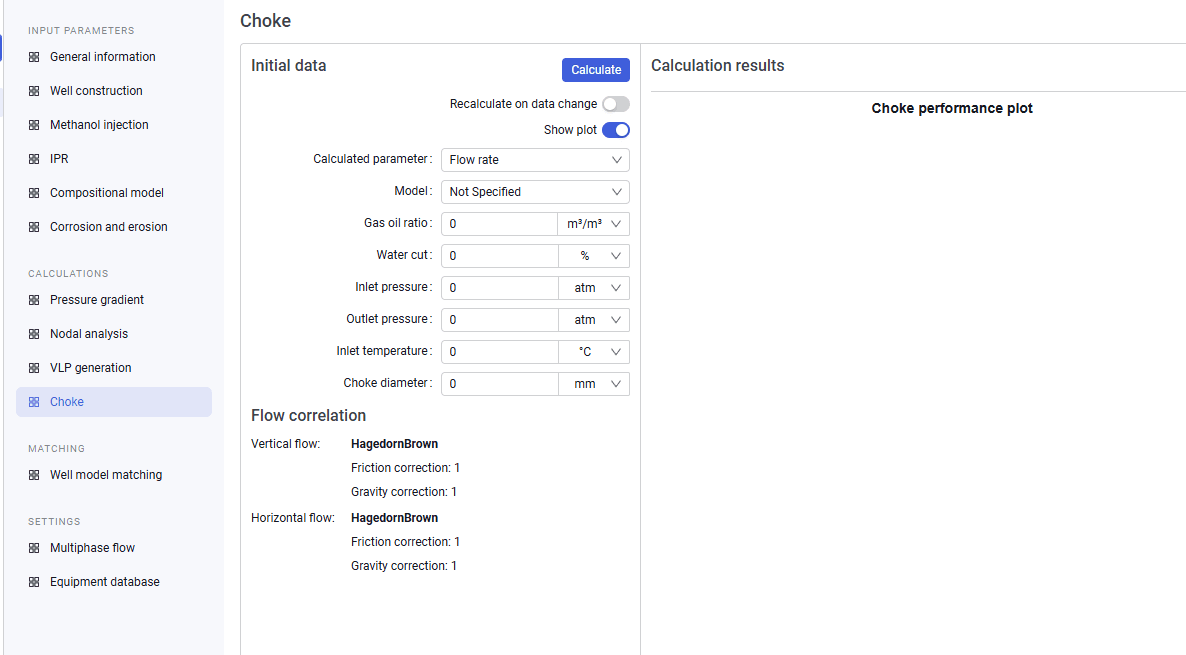

This tab is used to calculate the choke model. To run the calculation, select the calculated parameter (flow rate, choke outlet pressure, and choke diameter are available), the model (ELF, Venturi, and Sachdeva are available), and source data depending on the selected calculated parameter and model.

The tab also shows flow correlation information (the selected correlations for vertical and horizontal flow and the friction and gravity corrections).

On this tab you can select the "Recalculate on data change" and "Show plot" options. The right pane of the tab shows the calculation results and the choke performance plot.
