Importing Production History from Text File

To import production history from an existing reservoir model with the .ors extension, do the following.

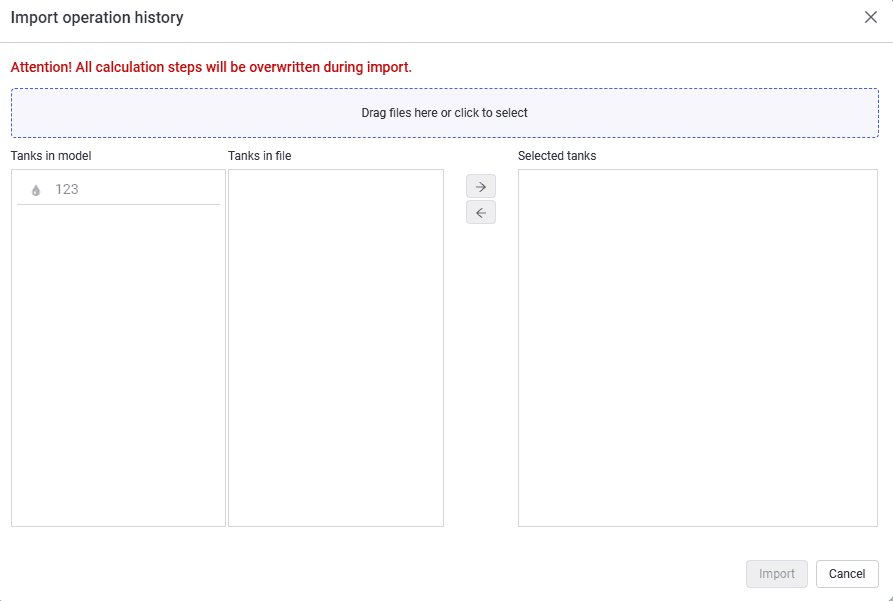

1.On the "Production history" tab, click the Import button.

Select image to enlarge

2.The model file is loaded by dragging the required file into the window using drag-and-drop. The area is highlighted in blue to indicate that the model file is in the correct area and you can release the mouse button.

Select image to enlarge

 You can also load files from File Explorer. To do this, click Drag files here or click to select, select the required model file in File Explorer, and click the Open button.

3.If reservoir names match, the reservoir in the model is automatically mapped to the reservoir in the loaded file.

4.If the reservoir names differ, map them manually: select the reservoir in the model, then select the reservoir in the file and click the button. A reservoir mapping appears in the selected reservoirs. You can map several reservoirs at once.

5.Using the Import button, production history is loaded for the selected reservoirs.

Requirements for the model file format are given in section 14.
