Importing Production History from Text File

To import production history from an existing reservoir model with wells with the .ors extension, do the following:

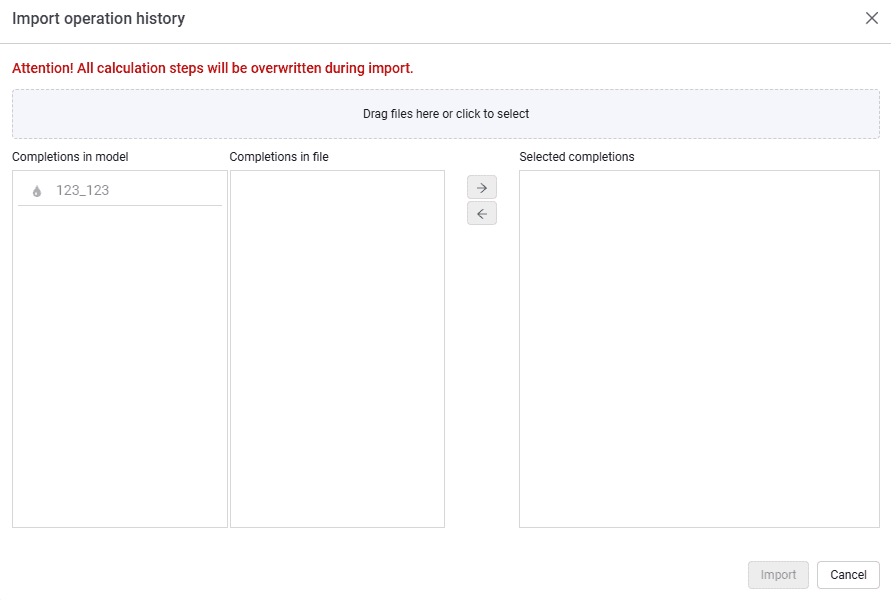

1.On the Operation history tab, click the Import button.

Select image to enlarge

2.The model file is loaded by dragging the required file into the window using drag-and-drop. The area is highlighted in blue to indicate that the model file is in the correct area and you can release the mouse button

3.You can also load files from File Explorer. To do this, click Drag files here or click to select.

4.In File Explorer, select the required model file and click Open.

5.If completion (well) names match, the completion in the model is automatically mapped to the completion in the loaded file.

6.If the completion names differ, map them manually: select the completion in the model, then select the completion in the file and click the button. A completion mapping appears in the selected completions.

7.Using the Import button, production history is loaded for the selected completions

8.Requirements for the model file format are given in section 14.
