VLP generation
To generate VLP tables, go to the "VLP generation" tab.

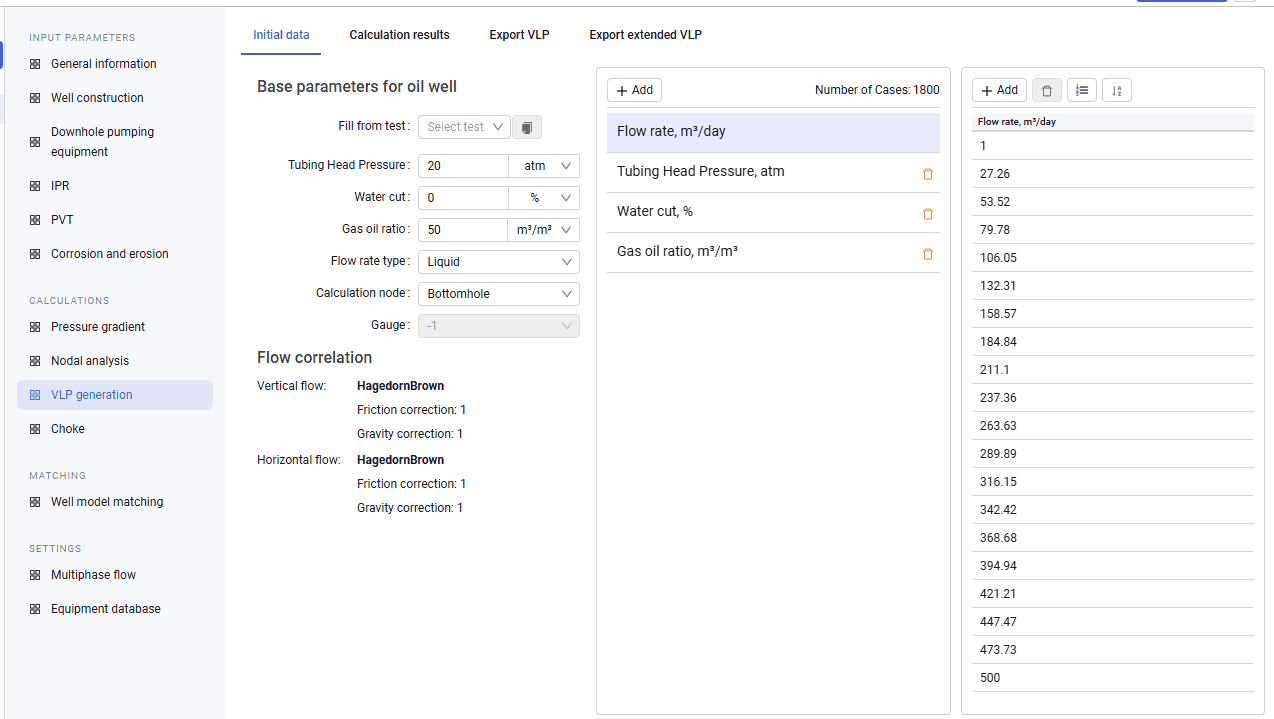

1.To run the calculation, fill in the following data:
- tubing head pressure;
- water cut;
- gas oil ratio;
- flow rate type.
| If any tests were entered on the "Well model matching" tab, you can automatically pull data from a test by clicking "Fill from test" and selecting the target test from the drop-down list. |
2.Then add different cases for a calculation series by clicking "Add". After that, you can add or generate a parameter series on the right side of the screen.
3.For a well equipped with an ESP, the following parameter set is required:
- tubing head pressure;
- water cut;
- gas oil ratio;
- flow rate;
- ESP frequency.
4.For a well equipped with an SRP, the following parameter set is required:
- tubing head pressure;
- water cut;
- gas oil ratio;
- flow rate;
- stroke rate (per minute).
5.After adding cases, click "Calculate VLP" in the upper-right corner of the screen. While the calculation is running, the button is inactive, and the lock next to the model name in the model tree becomes pale.
Select image to enlarge

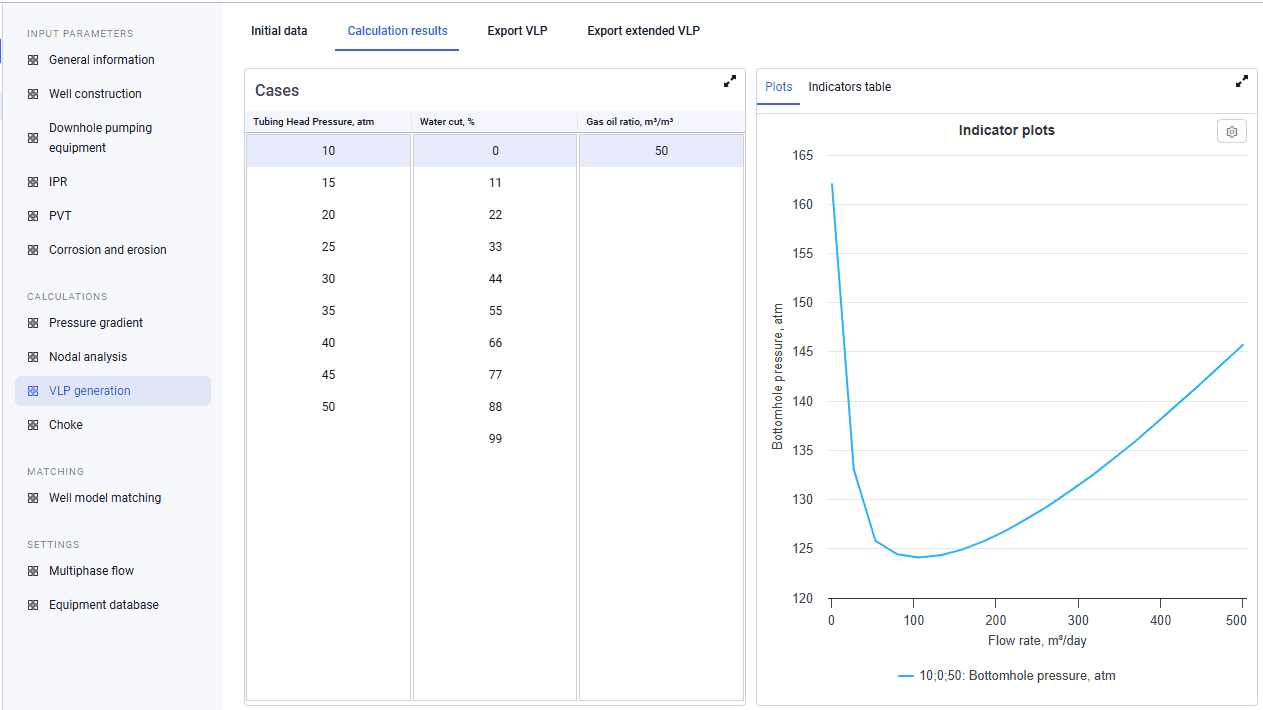

6.You can view calculation results on the "Calculation results" tab in table and plot form.
Select image to enlarge
7.The "Export" tab is used to export temperature and hydraulic VLPs in Eclipse format; the "Export extended VLP" tab is used to export VLP in the proprietary TPD format.
8.To export, click "Export".
9.After export, the VLP tables appear in the model tree.
