Displacement Characteristics

To enter relative permeability data, do the following:

1.In the object navigator, select a well.

2.On the Relative permeability tab, from the Relative permeability drop-down list select Displacement characteristic

3.For the Water displacement characteristic, select the Reservoir pressure argument and the Water cut value type using the button

4.Add new rows using the button

5.Enter a series of reservoir pressure and water cut values.

6.For the Gas displacement characteristic, select the Reservoir pressure argument and the Gas oil ratio value type using the button

7.Add new rows using the button

8.Enter a series of reservoir pressure and gas-oil ratio values.

9.All arguments (reservoir pressure, cumulative oil production, cumulative gas production, time) for displacement characteristics must be specified in ascending order.

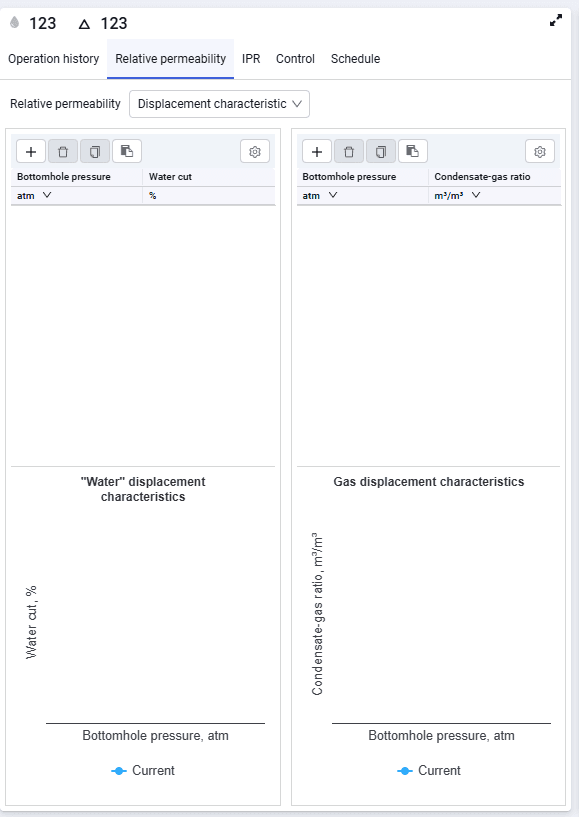

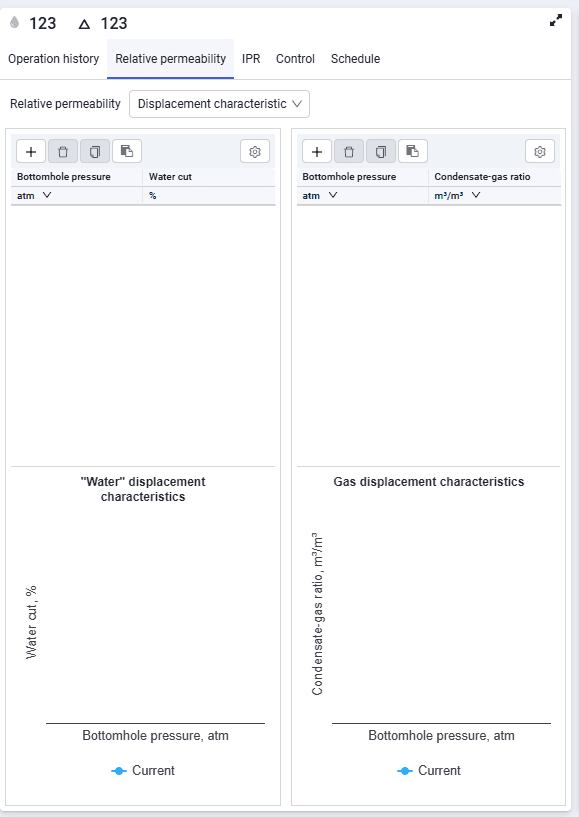

Select image to enlarge
