Connecting a reservoir model to a production system

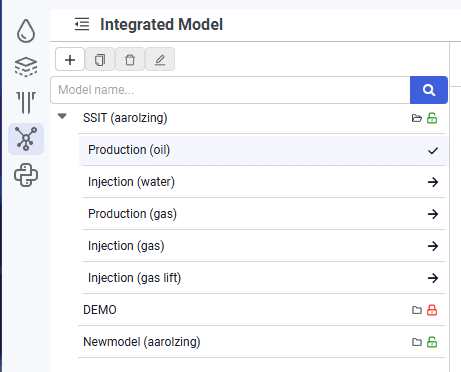

1.In the model tree, select the oil production system model previously created in the nv.AIM PIPE module.

Select image to enlarge

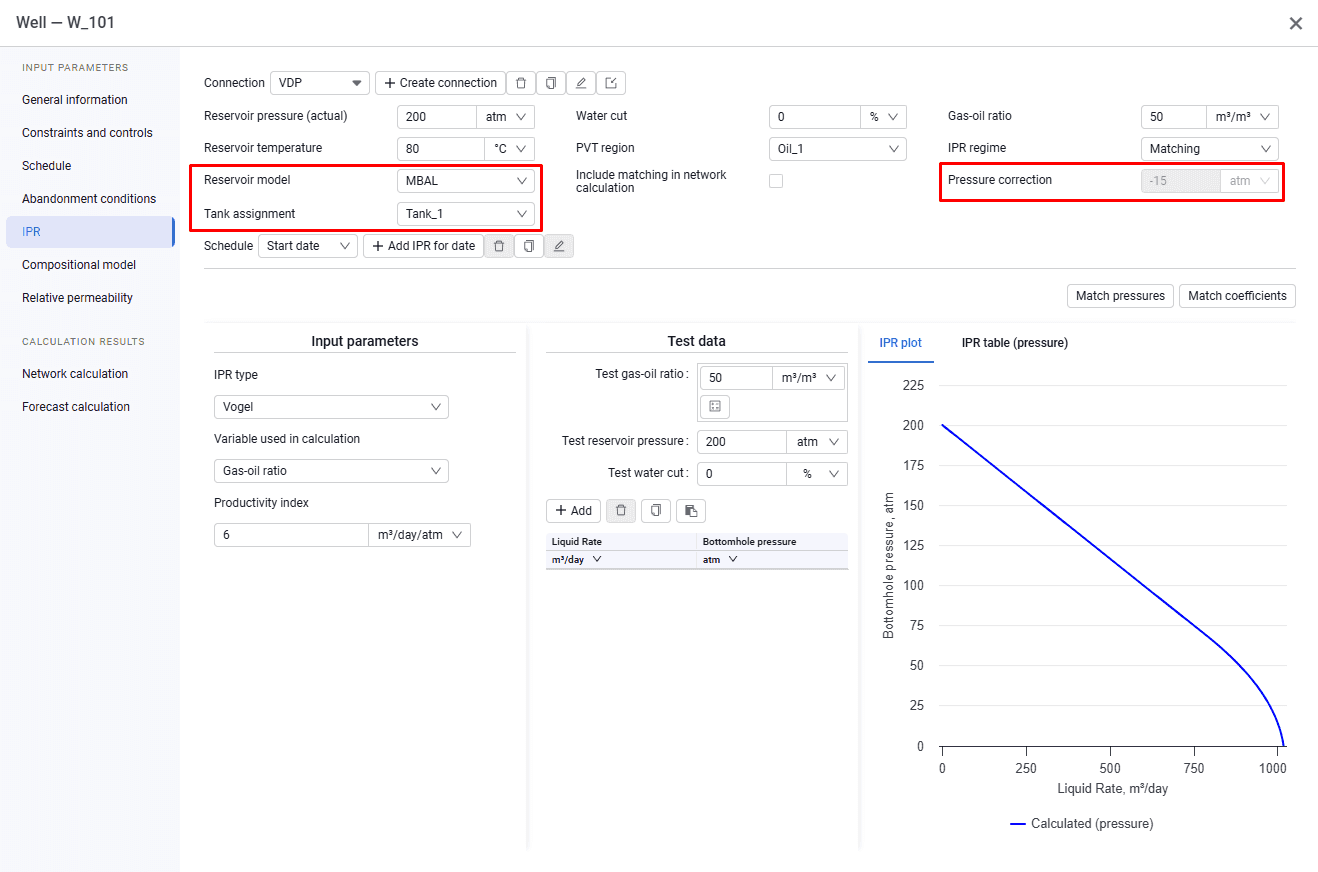

2.For each "Well" object, open the IPR tab, link the previously created material balance model, and enter a reservoir pressure shift if needed.

Select image to enlarge

3.You can also link reservoir models on the Linked models tab (the detailed procedure is described in the nv.AIM PIPE user guide).
