Nodal analysis

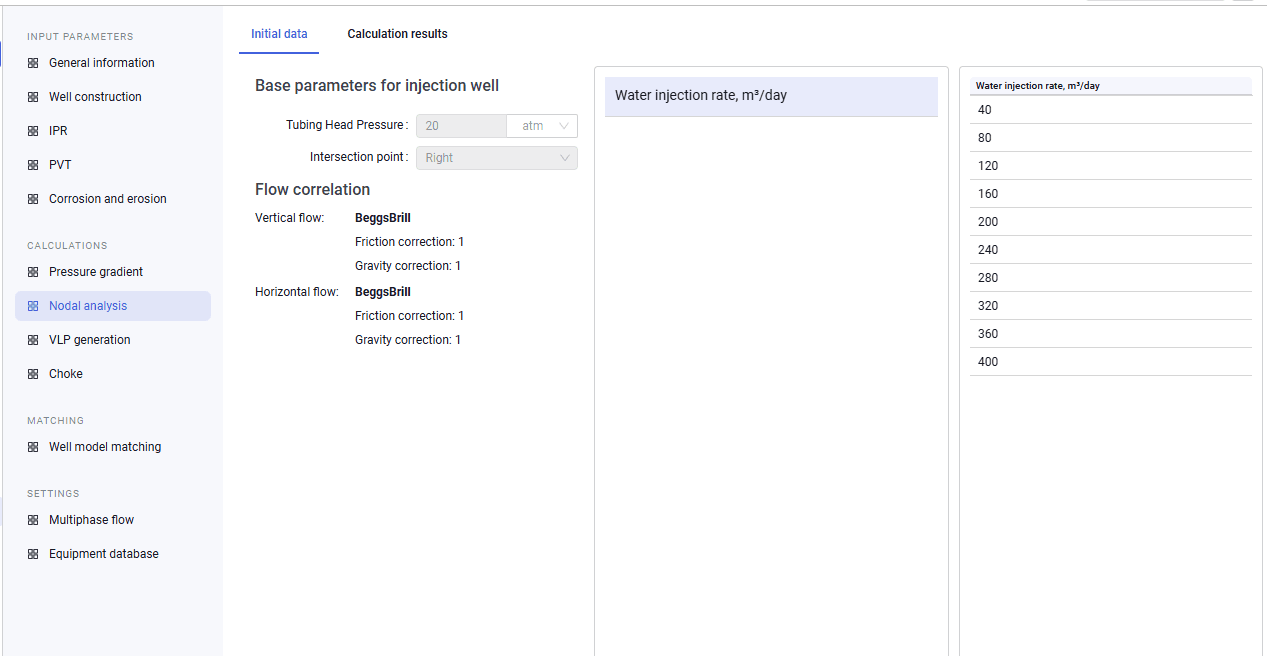

On this tab you can run a nodal analysis calculation, including for different parameter sets, and view the calculation results.

To run the calculation, enter tubing head pressure, water cut, gas oil ratio, and intersection point search (right or left).

The tab also shows flow correlation information (the selected correlations for vertical and horizontal flow and the friction and gravity corrections). You can additionally enter a set of parameter values for which nodal analysis must be calculated:

Select image to enlarge
