Creating an MBAL tank
To add a tank, perform the following actions:
1.In the Navigator, select "Reservoir model".
Select image to enlarge

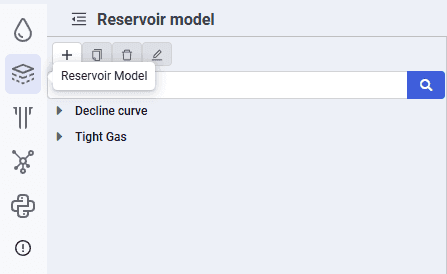

2.In the object tree, click
.

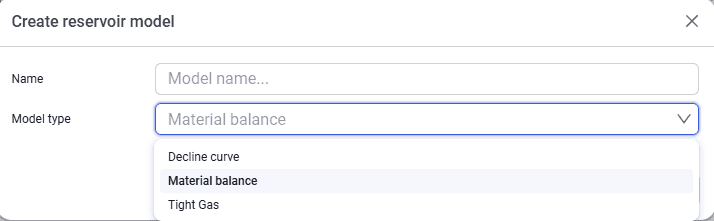

3.In the modal window, enter the model name and select the model type from the drop-down list. In this case, a material balance model.
Select image to enlarge
4.After filling in all required data, click Add.

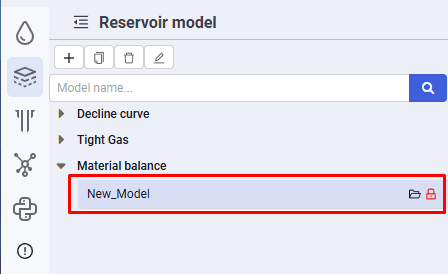

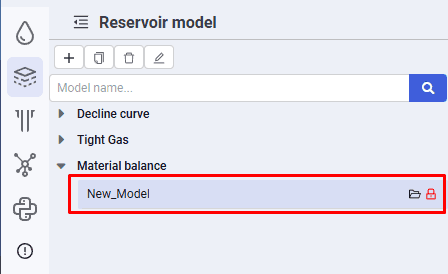

5.The new model will appear in the model tree.
Select image to enlarge

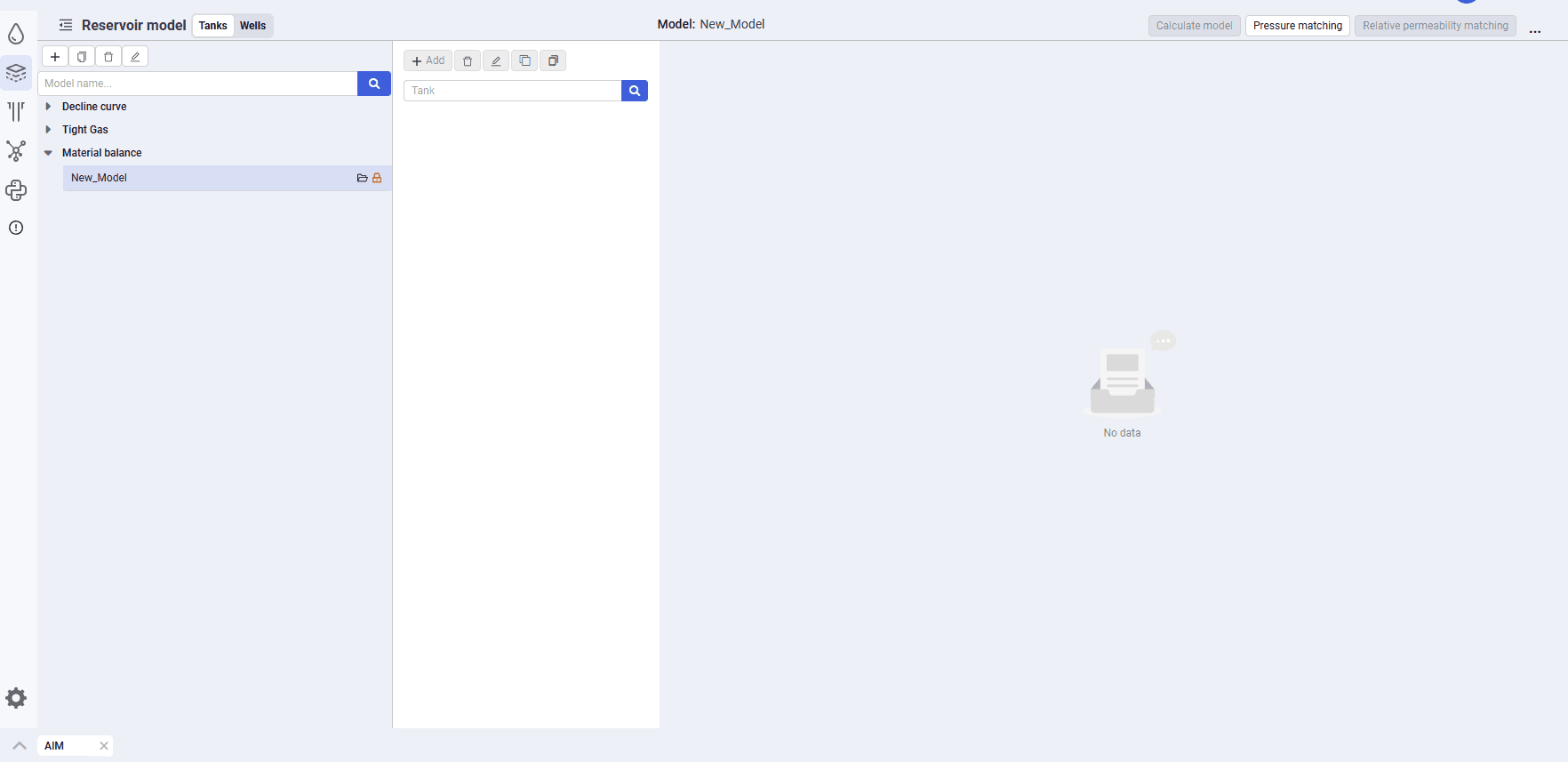

6.Load the selected model using the
button.
Select image to enlarge

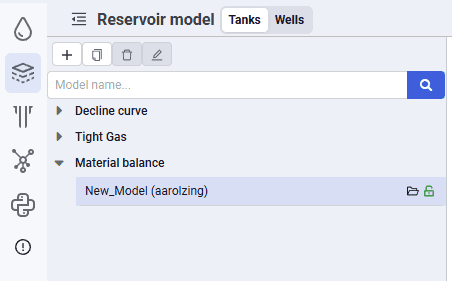

7.By default, the model is locked for editing. The model status is displayed in the row with the model name. To unlock the model, click the
button. The model will become available for editing, the model status will change to
, and the login of the user who is editing the model will appear in the row with the model name.
Select image to enlarge
8.To add a tank to the model, click the Add button.

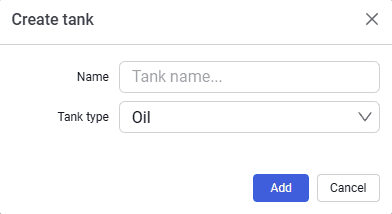

9.In the modal window, enter the tank name and select the tank type from the drop-down list.
Select image to enlarge
10.After filling in all data, click the Add button.

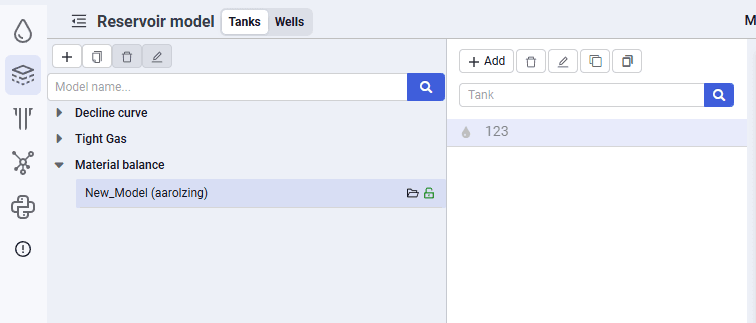

11.The new tank will appear automatically in the tank list.
Select image to enlarge
